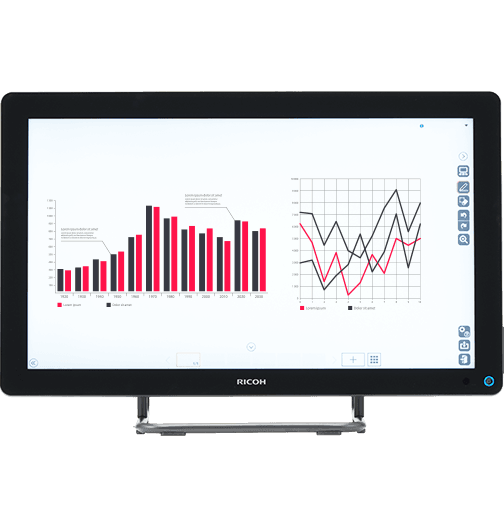

D3210BK with Business Controller

Interactive Whiteboard

ID: 432424B

Select from the options below for support and more

Download Manuals

Download Brochure

MyRicoh

If you are a current Ricoh Customer, you can use MyRicoh to get support for your products, purchase supplies, and much more.

Panel Size	Diagonal: 32" (812.8 mm)
Display Type	Liquid crystal display
Backlight	LED system
Effective Display Area W x H	28.3" x 16.3" (718.82 x 406.4 mm)
Resolution	1,920 x 1,080 (HD)
Display Color	16.77 million colors (10-bit color processing)
Brightness	Maximum: 500 cd/m²
Aspect Ratio	16 : 9
Contrast Ratio	3,000:1
Pixel Pitch	0.3637 mm
Response Speen	Less than 10 milliseconds
Viewing Angle HV	178°/178°

Technology	Projected Capacitive Touch Panel (PCTP)
Touch Points	10 (When IWB software is active, max. number of touch points is 4)
Accuracy	+/-2 mm (over 90% area)
Operating System	Multi-touch (up to 10): Windows® 7, 8, 8.1, 10 Single Touch: Windows® 7, Mac® OS 10.8+
Touch Output	USB 2.0 (Type B)
Cover Glass	2 mm thick anti-glare glass

Video Input	Display Unit: Mini D-Sub 15-pin (VGA) x 1, HDMI x 1 (HDCP compliant), DisplayPort x 1 (HDCP compliant)
Video Output	Display Unit: Displayport x 1
Audio Input	3.5 mm Line in Jack x 1 (For VGA, Dvi)
Audio Output	Internal Speaker (8W x 2)
Interfaces	USB 3.0 Type B x 1, RS-232c x 1 (Input), RS-232c x 1 (Output)
Dimensions W x D x H	31" x 2.75" x 18.89" (789 x 70 x 480 mm)
Weight	33 lbs. (15 kg)
Power Source	100 - 240 V, 50/60 Hz
Enhanced features	RS232 Control Daisy Chain, Picture Mode (including Low Blue Light mode), Backlight, Adaptive Contrast (Dimming Control), Brightness, Saturation, Chroma, Phase, Sharpness, Color Temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source, Picture-in-Picture, Picture-by-Picture, Aspect, Adjust Screen, Touch Feature, Language, Power Save, Quick Start Mode, Control Setting, Touch Control Setting, Set Monitor ID, Advanced Information Reset
Remote sharing function	Up to 20 interactive whiteboards and projector systems. Up to 20 browser viewers per interactive whiteboard (business controller only). Up to 50 remote devices (iOS®, Android® and Windows®) per interactive whiteboard Remote license is required for remote collaboration
Remote PC Operation	Yes

Power Consumption	Less than 215W
Stand-by mode	Less than .3W

Type	Business Note: The Business Controller is optional.
CPU	Intel® Core i5 4590T 2.1GHz
Operating Systems	Windows® Embedded Standard 8 (64bit)
SSD	64 GB
RAM	8 GB
Interfaces	VGA, HDMI out, Microphone in (3.5mm), Speakers out (3.5mm)
Network Connection	Wired LAN: 10BASE-T/100BASET/ 1000BASE-T

Optimize your workplace for more effective teamwork and innovation.
