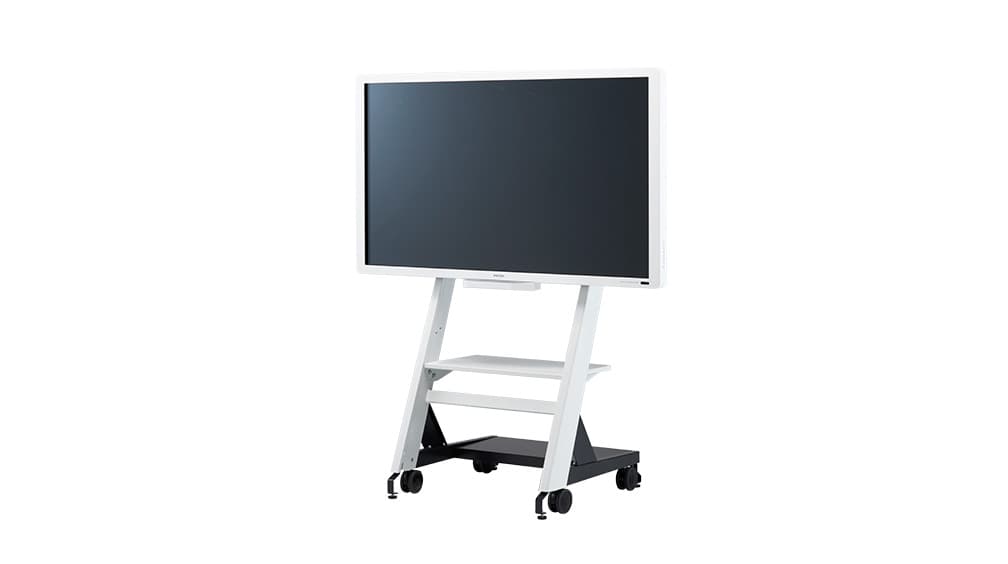

D6500 for Business

Interactive Whiteboard

ID: 432133

Select from the options below for support and more

Download Manuals

How-To-Videos

Learn about common tasks, topics and features as explained in more than 150 short video tutorials for our most popular devices.

Download Brochure

MyRicoh

If you are a current Ricoh Customer, you can use MyRicoh to get support for your products, purchase supplies, and much more.

RICOH Interactive Whiteboard Controller Type1

Download and install additional drivers, associated software and utilities for your device.

Technology	Infrared touch
Touch Points	2 (1 point for drawing, 2 points for gesture operation)
Touch Pen Request	>=5 mm
Accuracy	+/-10 mm in touchable areas
Operating System	Windows® 7 Home Premium/Ultimate/Professional; Windows 8 and 8.1 Pro/Enterprise; Windows 10 Technical Preview; Windows Embedded Standard 7 P
Touch Output	USB 2.0 (Type B)
Cover Glass	Pretreated anti-glare 4 mm thick

Video Input	Display unit: Mini D-SUB15pin x 1, HDMI (HDCP x 2), HDMI (PC) x 1, DVI-D (HDCP x 1), DisplayPort (HDCP x 1), Composite x 1, Component x 1, S-Video x 1
Video Output	VGA x 1, DVI x 1, Composite x 1
Audio Output	Pin plugs (R+L) and terminals for 12W + 12W speakers
Interfaces	USB 2.0 TYPE A x 2; USB 3.0 TYPE A x 1
Network Connection	Wired LAN: 10BASE-T/100BASET/ 1000BASE-T, Wireless LAN: Available with Wi-Fi converter (not supplied by Ricoh)
Dimensions W x D x H	60.3" x 4.96" x 38.8" (1,531 x 126 x 885 mm)
Weight	Less than 162.8 lbs. (74 kg)
Power Source	100 - 240 V, 50/60 Hz
User functions	20 color pen, Select, Delete (Erase), Undo/Redo, Save to USB/Network Folder/Interactive Whiteboard, Open PDF and PPT files from USB and Network Folder, Screen Page Select, Capture Page, Add New Page, Captured Page List, Delete Page, Copy Page, Marker Function, Auto Firmware Download
Enhanced features	Picture in Picture, Zooming, Recovery function, Email, Page Print, Data saving form: PDF v1.4, Max. page creation: 100, Max. strokes/page: 3,000
Remote sharing function	Up to 20 interactive whiteboards and projector systems, Up to 20 browser viewers per interactive whiteboard
Remote PC Operation	Yes
What's In The Box	Quick Guide and Safety Instruction, Warranty sheet, Customer registration postal card, RGB cable, USB cable. Power cord, Felt-tipped pen, Remote controller, AAA batteries (2)
Other Features	Brightness will depend on input mode and other picture settings.

Noise	Less than 40dB
Power Consumption	Less than 300W (with controller)
Stand-by mode	Less than 12W (without controller)
Recovery time from stand-by mode	About 6 sec.
Operating temperature	0°C - 32°C
Operating humidity	10% - 80%
Altitude limitation	Lower than 2,000m (sea level)

Type	Business
CPU	Intel iCore5 4590T 2.0GHz
Operating Systems	Windows Embedded Standard 8 (64-bit)
SSD	64 GB
RAM	8 GB
