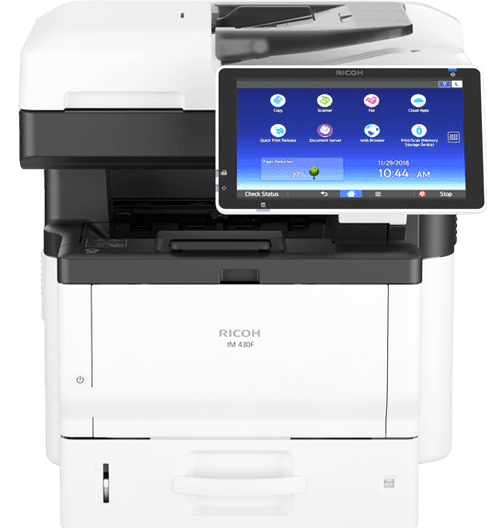

IM 430F

Offline Stapler Type M34

ID: 418093

• Optional offline stapler located on the side of the system providing walk-up users with the ability to conveniently staple printed output up to 20 sheets. The stapler can staple 1,000 times without reloading.
• W × D × H (inches): 2.7 × 3.5 × 2.6
• W × D × H (mm): 69 × 89 × 66

Caster Table Type M34

ID: 418143

• The caster table must be added to the configuration when three optional paper feed units are installed. It provides a platform with wheels to easily move the device.

Medium Cabinet Type P

ID: 52005

• Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper.
• Can only be configured with either one or two optional paper feed units.
• Weight: 35.3 lbs. (16 kg)
• W × D × H (inches): 14.6 × 15.4 × 11.2
• W × D × H (mm): 371 × 391 × 284

Paper Feed Unit PB1110

ID: 418080

• Provides an additional 250 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 14 lb. Bond/120 lb. Index.
• Weight: 10.58 lbs. (4.8 kg)
• W × D × H (inches): 14.6 × 15.5 × 3.8
• W × D × H (mm): 371 × 394 × 97

Paper Feed Unit PB1120

ID: 418081

• Provides an additional 500 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 14 lb. Bond/120 lb. Index.
• Weight: 12.13 lbs. (5.5 kg)
• W × D × H (inches): 14.6 × 15.5 × 4.9
• W × D × H (mm): 371 × 394 × 124

Notes:

• Caster Table Type M34 is required when three optional paper feed units are installed.

Tall Cabinet Type Q

ID: 52006

• Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper.
• Can only be configured with the standard configuration.
• Weight: 49.8 lbs. (18.5 kg)
• W × D × H (inches): 14.6 × 15.4 × 20.8
• W × D × H (mm): 371 × 391 × 528

IEEE802.11 Interface Unit Type M24

ID: 407863

• Allows MFP device to connect to the network over WiFi. Useful for temporary sites and locations where cabling is impractical.

PostScript3 Unit Type M34

ID: 418068

• Genuine Adobe® PostScript®3™. Recommended for printing more complex B&W and PDF files.
• The IM 305F, IM 430Fb and IM 430F come with standard PostScript3 Emulation and PDF Direct Print Emulation.
• This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.

Extended USB Board Type M19

ID: 417566

• Required for printing from USB Type B port.

Notes:

• Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.

File Format Converter Type M19

ID: 417508

• Required to convert formats and drag to desktop documents stored via Copy or Print mode.

Notes:

• File Format Converter Type M19 cannot be installed with the following options: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.
• *Exception - The File Format Converter Type M19 can be installed with the following options on the MP C4504ex or MP C6004ex models: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.

OCR Unit Type M13

ID: 417430

• This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).

Page Keeper Type M28

ID: 417893

• A multi-feed detection sensor that automatically stops a scanning job if more than one page is fed through the Single Pass Document Feeder.
• Ideal for environments that rely on scanning workflows and often scan mixed sized originals.

USB Device Server Option Type M19A

ID: 418105

• An interface board for adding an extra Ethernet port. If you install the USB Device Server Option, you can connect two Ethernet cables simultaneously: one to the machine's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option. An IP address can be assigned to each connection and you can use one machine to print from different network segments.

Notes:

• USB Device Server Option Type M19A cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.

NFC Card Reader Type M27

ID: 417727

• Enables users to log into and authenticate to the MFP with a programmed access card.

Optional Counter Interface Unit Type M12

ID: 417111

• 20-Pin interface used to attach external key counter or key card device.
