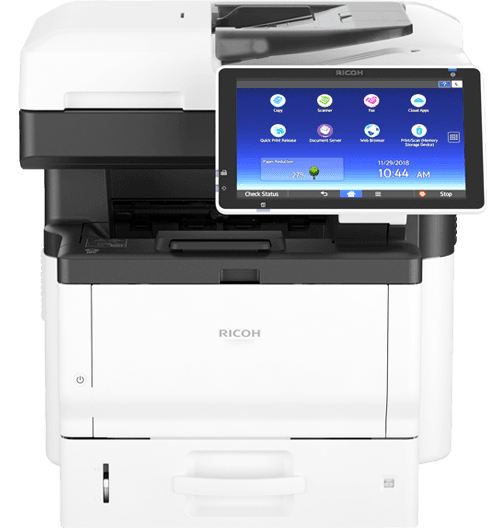

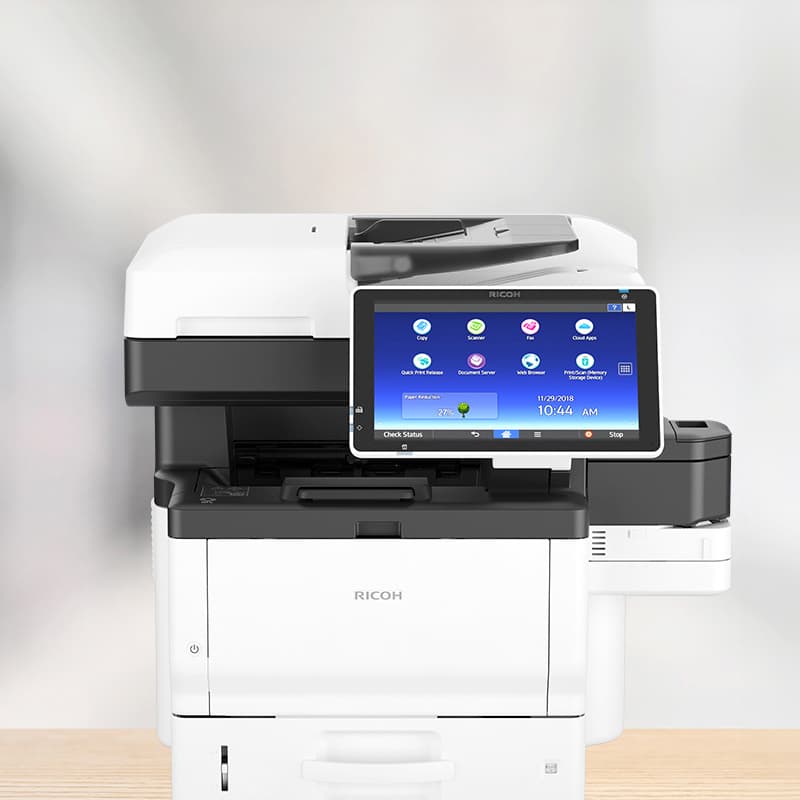

An all-in-one office printer to boost productivity

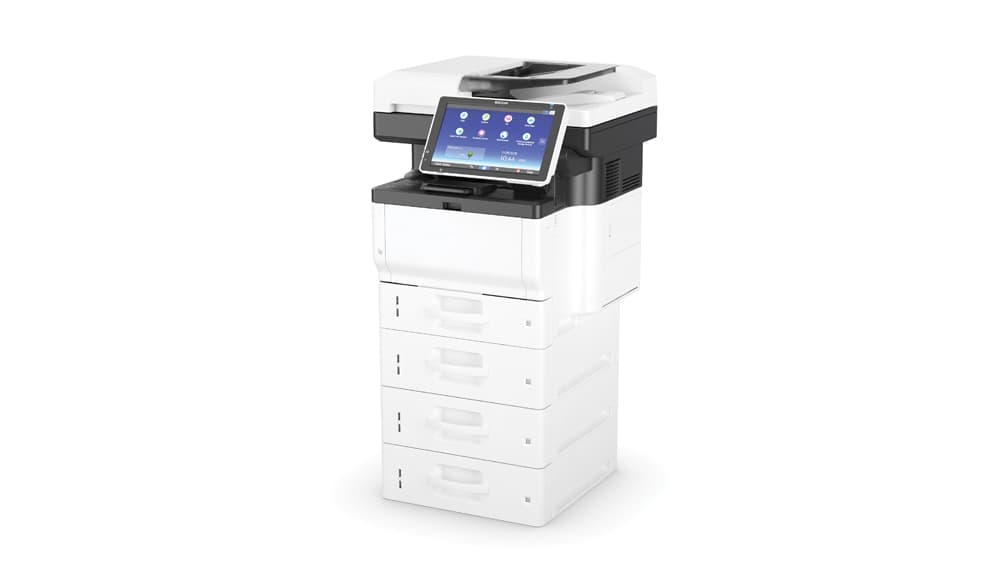

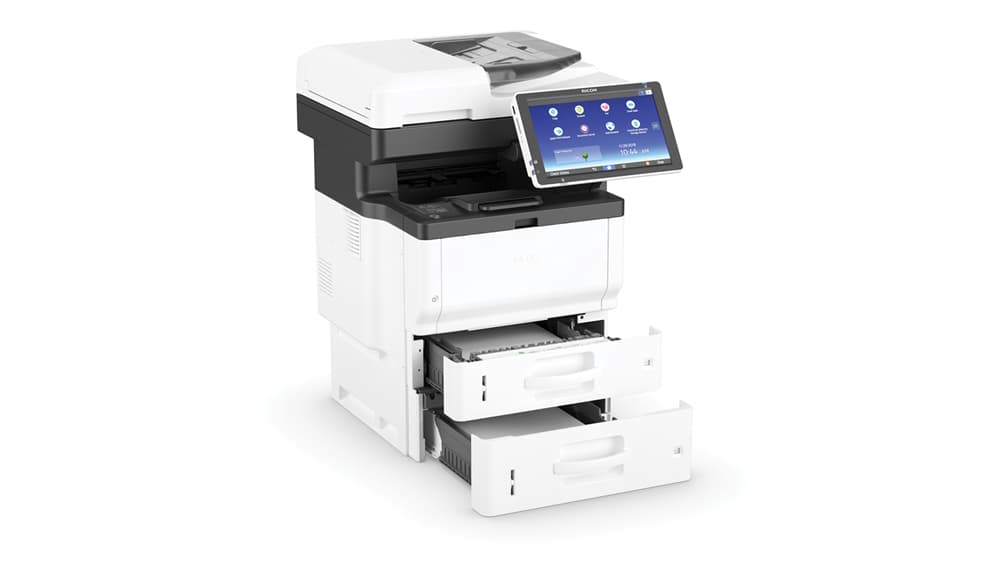

Handle the biggest challenges from the desktop with the RICOH IM 430FSE Black and White Multifunction Printer. Add paper trays to expand paper capacity to 2,100 sheets for fewer interruptions. Copy notes, statements and more at 1200 dpi. Print on a wide range of stocks and sizes up to 8.5" x 14", including envelopes and labels. Use an optional offline stapler to organize document sets quickly.

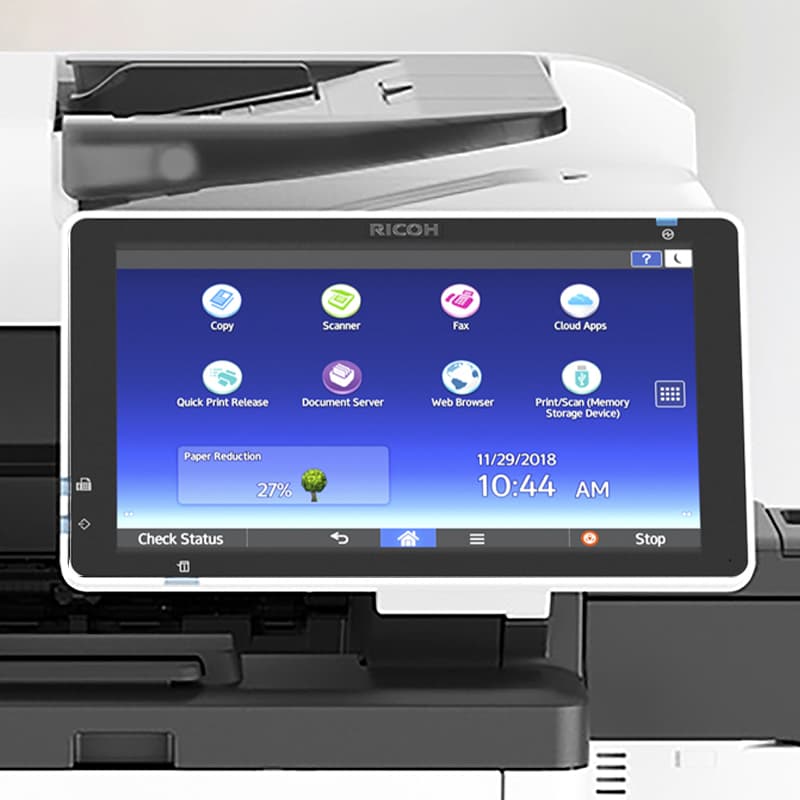

Place personalization at your fingertips
Share information and perform everyday tasks with speed and precision via the 10.1” Smart Operation Panel. Choose identifiable icons, including downloadable widgets, to place on the Home Screen for quick access to settings and details. Tap into the RICOH Application Site for access to more productivity-enhancing apps — and customize workflows with one-step convenience.
Simplify processes with mobile printing
Download the RICOH Smart Device Connector app to your smartphone or tablet to grab information from your mobile device for fast, easy, on-demand printing*. Use the app to scan originals at the device and send them to your personal device. Save scans to a USB Flash Drive or SD Card to take your best ideas with you. Or, simply scan and send files via email to contacts in your personal address book.
*Requires WiFi option
*Requires WiFi option
Access from anywhere with cloud-based storage
Customize document management workflows using cloud connectivity. With the embedded web browser, you can grab information online and from cloud-based storage and service sites. For example, use optional RICOH Smart Integration Solutions to automate how you print and share. Or, store data with the cloud-based, SharePoint® or other enterprise content management systems.

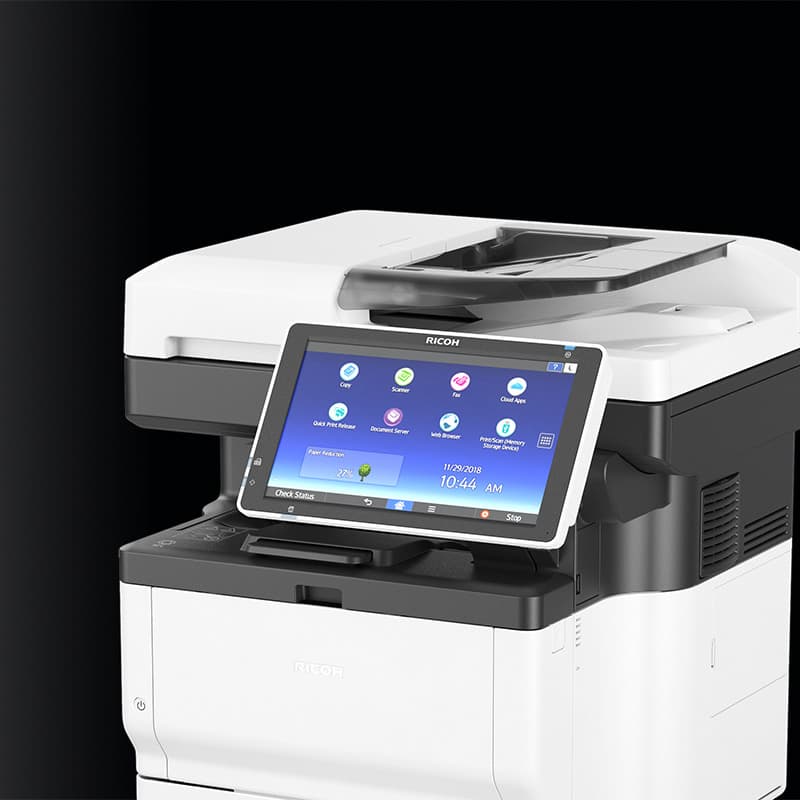

Streamline workflows and speed up processes
Digitize documents for faster delivery with the Single Pass Document Feeder and scan up to 40 images per minute (ipm). Use the Optical Character Recognition (OCR) option to create searchable PDFs for easier retrieval. Scan two-sided documents, such as ID and insurance cards, onto a single sheet of paper to reduce paper consumption.
Device maintenance made simple
Simplify maintenance and resolve issues faster by accessing FAQs or watching how-to videos directly from the Smart Operation Panel, so you can easily troubleshoot at any time. The IM 430FSE is also designed specifically to minimize paper misfeeds and jams. Plus, it offers web-enabled, optional services for device administration, automated service alerts and real-time monitoring for maximum uptime.
Built-in information security features
Add user authentication with the optional card readers and restrict access to critical information. Set controls to only allow authorized users. Confidential documents can be sent to a locked print queue and only released by an authenticated user. The built-in Hard Disk Drive offers embedded encryption for transmitted data and a DataOverwrite Security System (DOSS) helps delete latent data left on the hard drive.
Energy-efficient printing made simple
Perform more tasks using less energy. Designed to be quieter and more eco-friendly, the IM 430FSE meets ENERGY STAR® certification and EPEAT® Silver rating* — while achieving Typical Electricity Consumption of 0.57 kWh/week. Use default duplex printing to cut paper usage and program the MFP to power down during off hours. Fast warm up/first print times can reduce energy costs even more.
*EPEAT Silver rating is applicable only in the USA.
*EPEAT Silver rating is applicable only in the USA.
Need more information?
Learn more about the RICOH IM 430FSE Black and White Multifunction Printer and how it may fit your business.
| Configuration | Desktop |
|---|---|
| Control Panel | 10.1" Smart Operation Panel |
| Color/Black & White | Black & White |
| Output Speed Copy/Print | 45 ppm (letter) |
| First Page Out Time | Less than 5 seconds |
| Warm-Up Time | 24 seconds |
| Resolution | 1200 x 1200 dpi |
| System Memory | 2 GB RAM/ 320 GB HDD |
| Maximum Copy Quantity | Up to 999 copies |
| Document Feeder Type | Single Pass Document Feeder (SPDF) |
| Single Pass Document Feeder (SPDF) | 50 sheets |
| Zoom Range | 25% to 400% in 1% increments |
| Supported Paper Sizes | Standard paper tray(s): 5.5" x 8.5" - 8.5" x 14" (A6-A4, B6-B5) Optional paper tray(s): 5.5" x 8.5" - 8.5" x 14" (A6-A4, B6-B5) Bypass tray: 5.5" x 8.5" - 8.5" x 14" (A6-A4, B6-B5) Custom Sizes - Width: 2.36" - 8.5" (60 - 216 mm), Length: 5.0" - 35.43" (127 - 900 mm) |
| Supported Paper Weights | Trays: 14 - 58 lb. Bond (52 - 220 g/m²) Bypass: 14 - 68 lb. Bond (52 - 256 g/m²) Duplex: 14 - 43 lb. Bond (52 - 162 g/m²) |
| Supported Paper Types | Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Bond, Coated, Envelope, Label, OHP |
| Standard Paper Capacity | 500 sheets |
| Maximum Paper Capacity | 2,100 sheets |
| Standard Output Capacity | 250 sheets |
| Power Source | 120V - 127V/12A 60Hz |
| Typical Electricity Consumption (TEC) | 1.9 kWh/week |
| Power Consumption | Maximum: Less than 1,380W Operation: 628 W Ready: 91 W Sleep: 0.74 W |
| Energy Star | Certified |
| EPEAT Status | Silver |
| Dimensions W x D x H | 18.7" x 17.4" x 20.1" (476 mm x 442 mm x 510mm) |
| Weight | 67.24 lbs. (30.5 kg) |
Offline Stapler Type M34
ID: 418093
- Optional offline stapler located on the side of the system providing walk-up users with the ability to conveniently staple printed output up to 20 sheets. The stapler can staple 1,000 times without reloading.
- W × D × H (inches): 2.7 × 3.5 × 2.6
- W × D × H (mm): 69 × 89 × 66
Caster Table Type M34
ID: 418143
- The caster table must be added to the configuration when three optional paper feed units are installed. It provides a platform with wheels to easily move the device.
Medium Cabinet Type P
ID: 52005
- Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper.
- Can only be configured with either one or two optional paper feed units.
- Weight: 35.3 lbs. (16 kg)
- W × D × H (inches): 14.6 × 15.4 × 11.2
- W × D × H (mm): 371 × 391 × 284
Paper Feed Unit PB1110
ID: 418080
- Provides an additional 250 sheets.
- Paper sizes up to 8.5" x 14".
- Paper weights up to 14 lb. Bond/120 lb. Index.
- Weight: 10.58 lbs. (4.8 kg)
- W × D × H (inches): 14.6 × 15.5 × 3.8
- W × D × H (mm): 371 × 394 × 97
Paper Feed Unit PB1120
ID: 418081
- Provides an additional 500 sheets.
- Paper sizes up to 8.5" x 14".
- Paper weights up to 14 lb. Bond/120 lb. Index.
- Weight: 12.13 lbs. (5.5 kg)
- W × D × H (inches): 14.6 × 15.5 × 4.9
- W × D × H (mm): 371 × 394 × 124
Notes:
- Caster Table Type M34 is required when three optional paper feed units are installed.
Tall Cabinet Type Q
ID: 52006
- Raises the height of the system while providing businesses with a convenient option for the storage of supplies and paper.
- Can only be configured with the standard configuration.
- Weight: 49.8 lbs. (18.5 kg)
- W × D × H (inches): 14.6 × 15.4 × 20.8
- W × D × H (mm): 371 × 391 × 528
Wireless Bridge Unit BR-500AC
ID: 423892
- An external wireless bridge that utilizes a cable connection to the Ethernet port on a MFP or printer.
Notes:
- 1. Requires an included AC adapter, so it does require a separate wall outlet.
- 2. This option does not offer Ad Hoc mode or Wi-Fi Direct capability.
PostScript3 Unit Type M34
ID: 418068
- Genuine Adobe® PostScript®3™. Recommended for printing more complex B&W and PDF files.
- The IM 305F, IM 430Fb and IM 430F come with standard PostScript3 Emulation and PDF Direct Print Emulation.
- This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.
OCR Unit Type M13
ID: 417430
- This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).
Optional Counter Interface Unit Type M12
ID: 417111
- 20-Pin interface used to attach external key counter or key card device.
