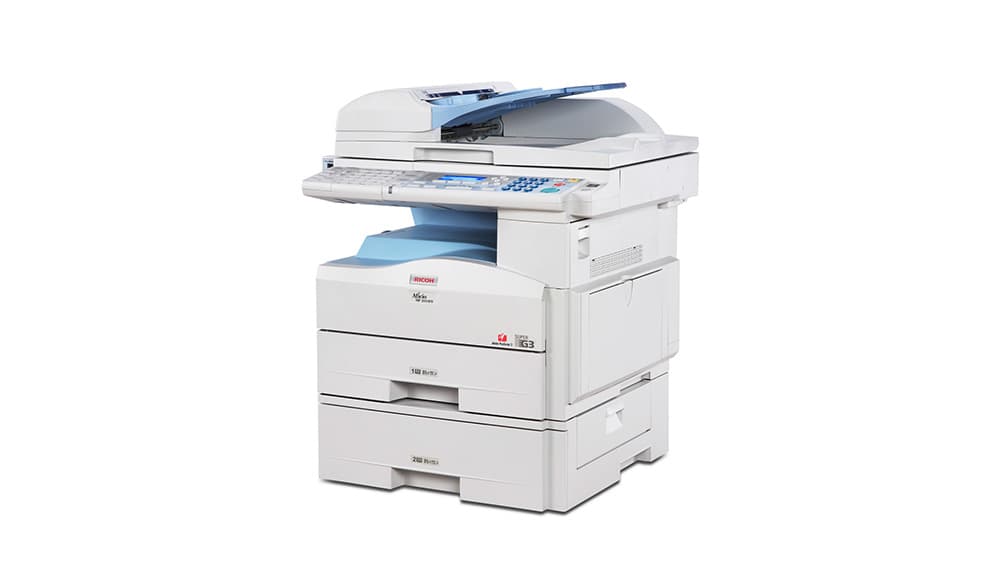

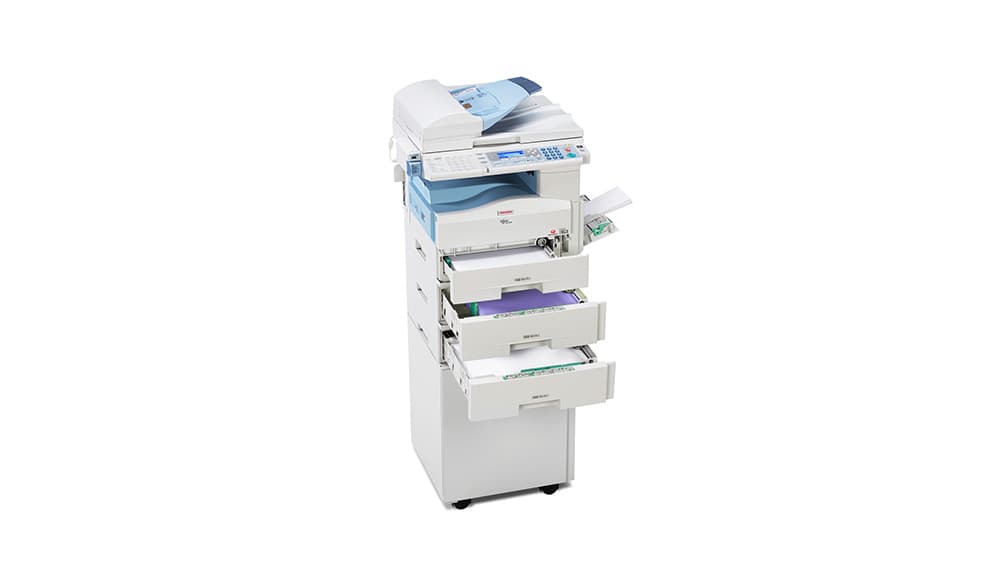

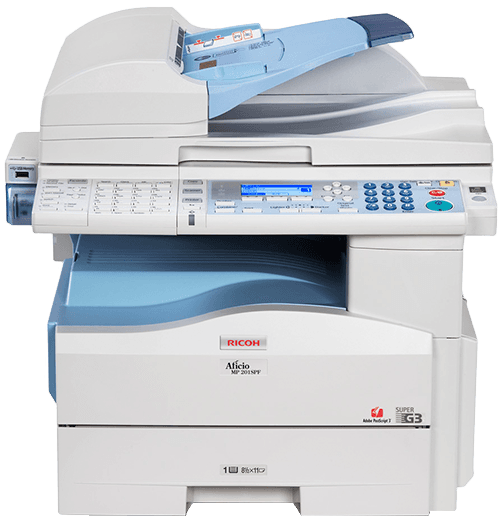

MP 201SPF

Cabinet Type FAC19

ID: 52761

FAC44 Cabinet

ID: 52991

Notes:

• Recommended when two Optional PB1030's are installed.

Hard Disk Drive Option Type 201

ID: 417411

Notes:

• This option is available for installation on the MP 201SPF models only and includes DOSS and HDD Encryption. The HDD is required to enable the following features: Paperless Fax, Local Fax Storage, Sample, Locked, and Hold.

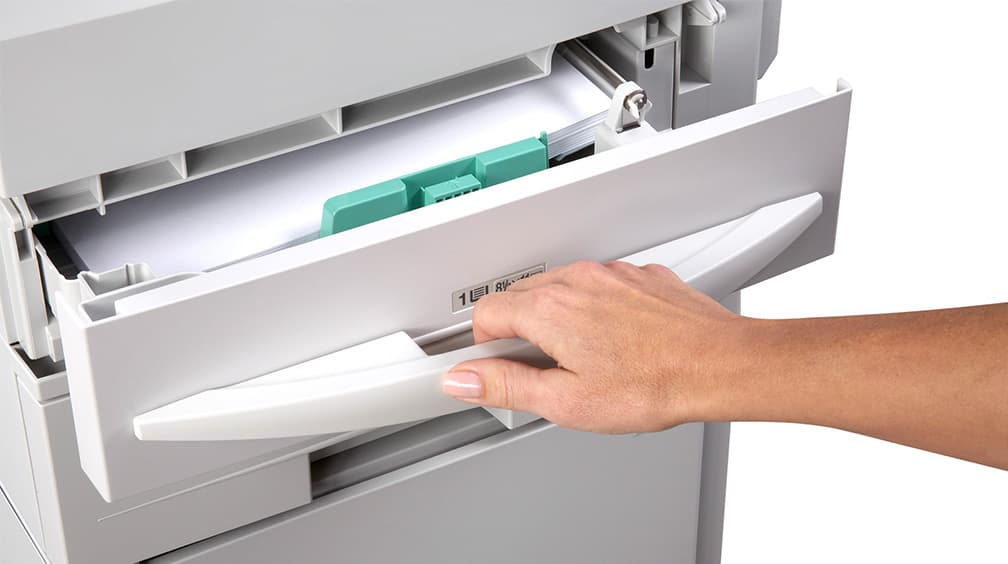

Paper Feed Unit PB1030 (1 x 500 Sheets)

ID: 415674

Notes:

• Up to two Optional PB1030 Paper banks can be installed, bringing the maximum paper capacity to 1,350 sheets.
• Recommended when two Optional PB1030's are installed.

IEEE 802.11a/g Interface Unit Type L

ID: 403000

• This option allows you to connect the device wirelessly to the LAN.

Notes:

• IEEE 802.11a/g Interface Unit Type L cannot be installed with IEEE 1284 Interface Board Type A or Gigabit Ethernet Board Type C.

Gigabit Ethernet Board Type A

ID: 402547

Notes:

• Only one of the following three options can be installed. IEEE 1284 Interface Board Type A or IEEE 802.11 a/g Interface Unit type L or Gigabit Ethernet Board Type A. They cannot be installed together.

USB2.0/SD Slot Type B

ID: 414917

Notes:

• Option is available for installation on the MP 201SPF model. This option allows users the ability to Scan-to-Media (USB drive or SD Card).

VM Card Type L

ID: 414902

Notes:

• Required for JAVA customization.

Embedded HotSpot Option Type S

ID: 415620

• Required to enable HotSpot printing. One year HotSpot printing subscription service.

IEEE1284 Interface Board Type A

ID: 411699

• For environments that require Parallel connectivity.
• Allows device connection with legacy computer equipment.

Notes:

• IEEE1284 Interface Board Type A cannot be installed with IEEE802.11a/g/n Wireless Interface Type M2, File Format Converter Type E or USB Device Server Option Type M12.

ESP XG-PCS-15D Power Filter

ID: 006428MIU

• The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.

Notes:

• ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.

Optional Counter I/F Type A

ID: 413012

• Optional 20-Pin Interface used to attach external key counter or key card device.
