| Configuration | Desktop |
|---|---|
| Scanning Element | Flatbed with CCD array image-sensing element |
| Printing Process | Laser beam scanning/marking & electrophotographic printing |
| Toner Type | Dry, Dual Component |

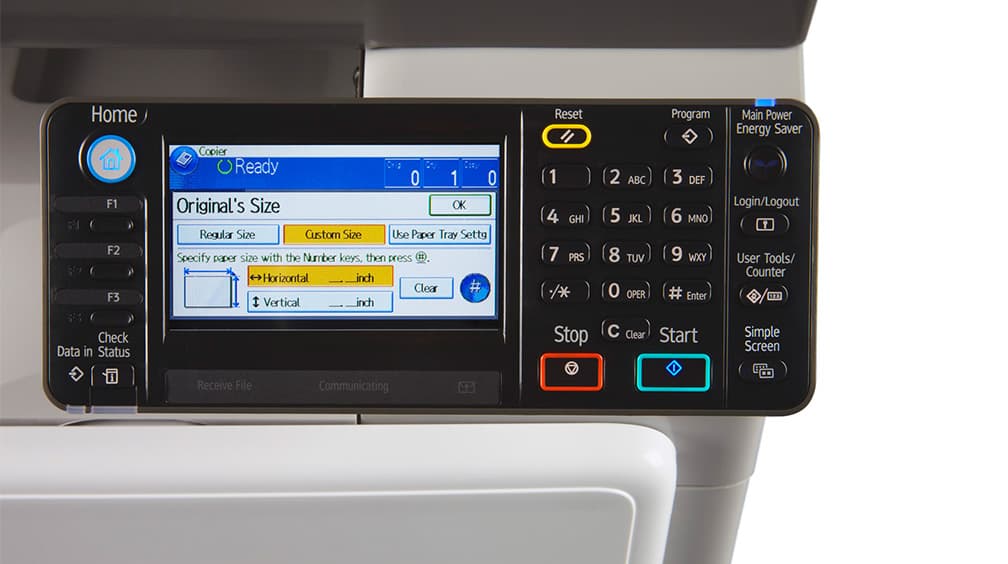

| Control Panel | 4.3" color touch panel |
| Color/Black & White | Black & White |
| Output Speed Copy/Print | 31 ppm |
| First Page Out Time | 6 seconds or less (B/W) |
| Warm-Up Time | Less than 23 seconds (from main switch) |
| Recovery Time From Sleep Mode | Less than 10 seconds |
| Resolution | 600 x 600 dpi |
| System Memory | 1 GB RAM + 128 GB Optional HDD |
| Maximum Copy Quantity | Up to 99 |
| Duplexing | Automatic (Standard) |
| Document Feeder Type | Automatic Reversing Document Feeder (ARDF) |
| Document Feeder Original Size | 8.5" x 14" (216 x 356 mm) |
| Document Feeder Paper Weight | 20 – 24 lb. Bond (60 – 90 g/m2) |
| Document Feeder Capacity | 50 sheets |
| Preset Reduction and Enlargement Ratios | 65%, 78%, 93%, 129%, 155% |
| Zoom Range | 25% to 400% in 1% increments |
| Exposure Adjustment | Manual and automatic |
| Exposure Glass Size | Up to 8.5" x 14" |
| Original Type | Sheets / Books |
| Original Size | 5.5" x 5.5" to 8.5" x 14" (140 x 140mm to 216 x 356mm) |
| Maximum Original Size | Up to 8.5" x 14" (216 x 356mm) |
| Supported Paper Sizes | Standard Tray: 5.5" x 8.5" to 8.5" x 11" Optional Tray: 8.5" x 11" to 8.5" x 14" Bypass Tray: 5.5" x 8.5" to 8.5" x 14" Duplex Unit: 8.5" x 11" to 8.5" x 14" |
| Supported Paper Weights | Standard/Optional Trays: 16 – 24 lb. Bond (60- 90gsm2) Bypass Tray: 16 – 42 lb. Bond (60- 157gsm2) Duplex Unit: 20 – 24 lb. Bond (60- 90gsm2) |
| Supported Paper Types | Plain paper, recycled paper, letterhead, preprinted paper, bond paper, prepunched paper, envelopes (bypass tray only) |
| Standard Paper Capacity | Standard: 250 sheets + 100-Sheet Bypass Tray Optional: 500 sheets x 1 or 2 Trays |
| Maximum Paper Capacity | 1,350 sheets |
| Standard Output Capacity | 250 sheets (internal tray) |
| Maximum Monthly Volume | 5000 |
| Power Source | 120V, 60Hz, 8A |
| Typical Electricity Consumption (TEC) | 0.696 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
| Power Consumption | Operating: Less than 1.1 kW (max) Sleep Mode: 2.8 W |
| Dimensions W x D x H | 19.0" x 17.7" x 18.1" (476 mm x 450 mm x 451 mm) – mainframe, includes ARDF |
| Weight | 57.3 lbs./ 26 kg. |
| Standard Features | Document Server*, Image Rotation, Auto Off Timer, Combine Copy, Electronic Sort, Energy Saver Timer, Photo Mode, SeriesCopy, Job Programs (25), User Codes(8 digits, 1,000 Personal Codes) |
| Footnotes | *HDD required |
Fax Connection Unit Type I
ID: 416194
FAC58 CABINET
ID: 52331
FAC57 Cabinet
ID: 52341
Notes:
- Recommended with MP 301SPF only. No Optional Paper Banks should be installed. (Tall Cabinet)
Hard Drive Option Type 301 A
ID: 007168MIU
Paper Feed Unit Type PB1040 (1 x 500 Sheets)
ID: 416203
Notes:
- Up to two Optional PB1040 Paper Banks can be installed, bringing the maximum paper capacity to 1,350 sheets.
Bluetooth Interface Unit Type D
ID: 415818
- Provides wireless printing at close range.
- The bluetooth option is installed in one of the 2 USB host interface slots.
Notes:
- 1. One open interface board slot is available. Gigabit Ethernet, Wireless LAN, Bluetooth Interface or File Format Converter may be installed.
- 2. Bluetooth Interface Unit Type D cannot be installed with IEEE802.11 a/g Interface Unit Type J, File Format Converter Type E or Gigabit Ethernet Board Type C.
Browser Unit Type G
ID: 416200
Notes:
- Enables users to connect to software solutions.
Gigabit Ethernet Board Type A
ID: 402547
Notes:
- Only one of the following three options can be installed. IEEE 1284 Interface Board Type A or IEEE 802.11 a/g Interface Unit type L or Gigabit Ethernet Board Type A. They cannot be installed together.
SD Card for Netware Printing Type 1
ID: 416196
Notes:
- Available for Customers who require NetWare printing.
VM Card Type U
ID: 416163
Notes:
- Required for JAVA customization and installation of software solutions.
Embedded HotSpot Option Type S
ID: 415620
- Required to enable HotSpot printing. One year HotSpot printing subscription service.
File Format Converter Type E
ID: 414007
- Required to convert formats and drag to desktop documents stored via Copy or Print mode.
Notes:
- File Format Converter Type E cannot be installed with IEEE1284 Interface Board Type A, IEEE802.11a/g/n Wireless Interface Type M2 or or USB Device Server Option Type M12.
IEEE1284 Interface Board Type A
ID: 411699
- For environments that require Parallel connectivity.
- Allows device connection with legacy computer equipment.
Notes:
- IEEE1284 Interface Board Type A cannot be installed with IEEE802.11a/g/n Wireless Interface Type M2, File Format Converter Type E or USB Device Server Option Type M12.
Unicode Font Package for SAP 1 Device License
ID: 413009
- Unicode Font Package for SAP - 1 seat license.
Unicode Font Package for SAP(R) 10 License
ID: 413010
- Supports multi-language printing for global business environments.
Copy Data Security Unit Type F
ID: 413985
Notes:
- Prevents unauthorized reproduction of confidential documents.
ESP XG-PCS-15D Power Filter
ID: 006428MIU
- The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.
External USB Keyboard (No Bracket)
ID: 100266FNG
- External keyboard for inputting data with either SDK applications or embedded applications.
Notes:
- 1. External Keyboard Bracket Type M19 is required for this option.
- 2. External USB Keyboard (No Bracket) cannot be installed with the NFC Card Reader Type M19.
Optional Counter I/F Type A
ID: 413012
- Optional 20-Pin Interface used to attach external key counter or key card device.
