| Configuration | Desktop Monochrome Laser Multifunction Printer with AIO Cartridge Technology |
|---|---|
| Scanning Element | Laser beam scanning |
| Printing Process | Electrophotographic printing |
| Toner Type | Dry, mono component |

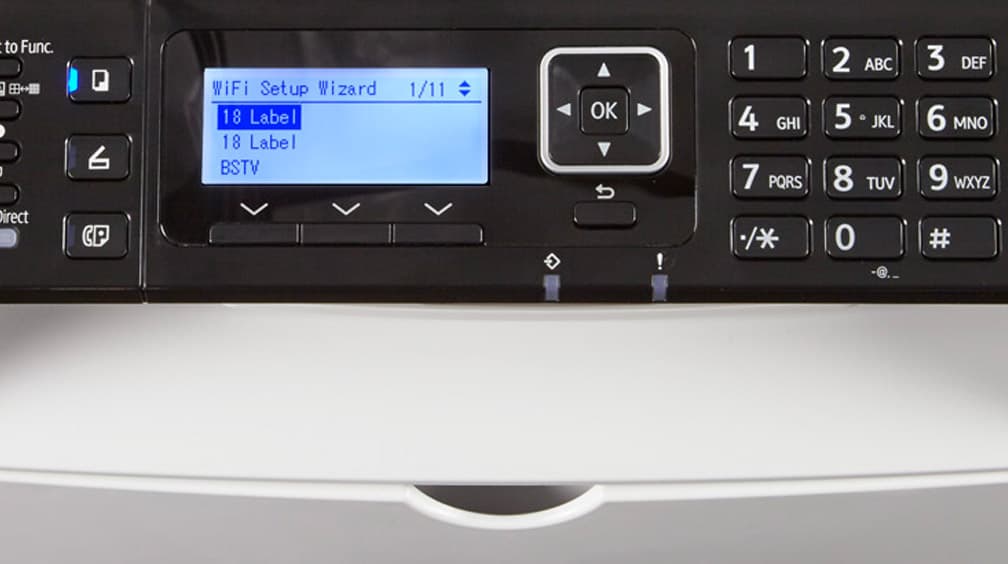

| Control Panel | 4-line LCD + alphanumeric keypad + LED alert indicators |
| Color/Black & White | Black & White |
| Output Speed Copy/Print | 30 ppm |
| First Page Out Time | 8 seconds or less |
| Warm-Up Time | 30 seconds or less |
| Resolution | Scanning: 600 x 600 dpi via Platen, 600 x 300 dpi via ARDF Printing: Up to 1200 x 1200 dpi |
| System Memory | 128 MB RAM standard/maximum |
| Maximum Copy Quantity | Up to 99 |
| Duplexing | Automatic (Standard) |
| Document Feeder Type | Automatic Reversing Document Feeder (Standard) |
| Document Feeder Original Size | 5.5" x 5.5" to 8.5" x 14" (140 x 140 mm to 216 x 356 mm) |
| Document Feeder Paper Weight | 14 – 43 lb. Bond/90 lb. Index (52 – 162 g/m2) |
| Document Feeder Capacity | 35 sheets |
| Preset Reduction and Enlargement Ratios | 50%, 65%, 78%, 93% 129%, 155%, 200%, 400% |
| Zoom Range | 25 - 400% in 1% increments via ARDF or platen |

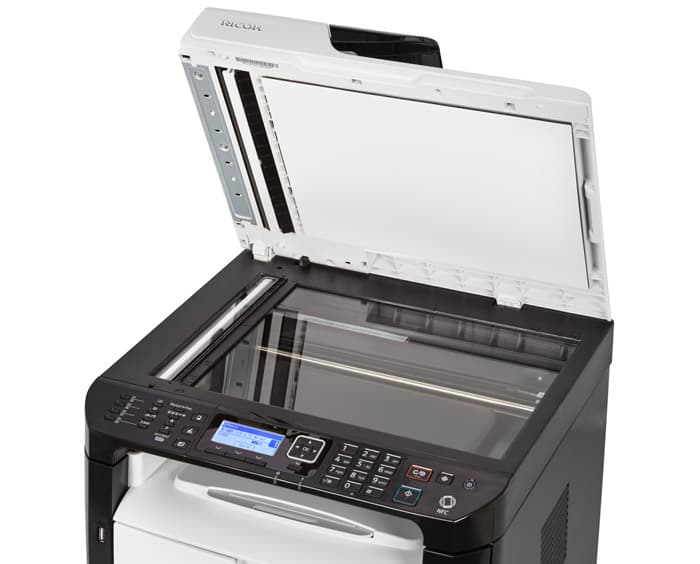

| Exposure Glass Size | 8.5" x 11.7" (216 x 297mm) |
| Original Type | Platen: Sheets/Books/3D objects/Wallet-size ID Cards |
| Original Size | 5.5" x 8.5" to 8.5" x 14", A6 - B5 |
| Maximum Original Size | Platen: Up to 8.5" x 11.7"/A4 (210 x 297mm) ARDF: Up to 8.5" x 14" (216 x 356mm) |
| Supported Paper Sizes | Standard Tray: 5.5" x 8.5" to 8.5" x 14", A6 - B5 Custom Sizes: 3.94" x 5.82" to 8.5" x 14" (100 x 148 mm to 216 x 356mm) Bypass Tray: 5.5" x 8.5" to 8.5" x 14", A6 - B5, Envelopes Custom Sizes: 3.5" x 5.5" to 8.5" x 14" (90 x 140 mm to 216 x 356mm) Duplexing: 8.5" x 11", 8.5" x 14", A4 |
| Supported Paper Weights | Standard Tray: 14 - 43 lb. Bond/90 lb. Index (52 - 162 g/m2) Bypass Tray: 14 - 43 lb. Bond/90 lb. Index (52 - 162 g/m2) Duplexing: 16 - 28 lb. Bond (60 - 105 g/m2) |
| Supported Paper Types | Standard Tray: Thin, Thick, Plain, Recycled, Color, Preprinted, Pre-punched, Letterhead, Bond, Cardstock, Labels Bypass: Thin, Thick, Plain, Recycled, Color, Preprinted, Pre-punched, Letterhead, Cardstock, Labels, OHP*, Envelopes* |
| Standard Paper Capacity | 250-Sheet Tray x 1 + 50-Sheet Bypass = 300 sheets |
| Maximum Paper Capacity | 300 sheets |
| Standard Output Capacity | 50 sheets (face down) |
| Maximum Monthly Volume | 5800 |
| Power Source | 120V, 60Hz, 7A |
| Typical Electricity Consumption (TEC) | 2.15 kWh/week |
| Power Consumption | Maximum: 800 W Sleep Mode: 1 W or less |
| Energy Star | Certified |
| EPEAT Status | Silver |
| Dimensions W x D x H | 15.9" x 15.5" x 15.9" (405 x 392 x 405mm) |
| Weight | 37.5 lb (17kg) (including Starter AIO) |
| Footnotes | *From Bypass Tray only. **Typical Electricity Consumption by ENERGY STAR program. |
