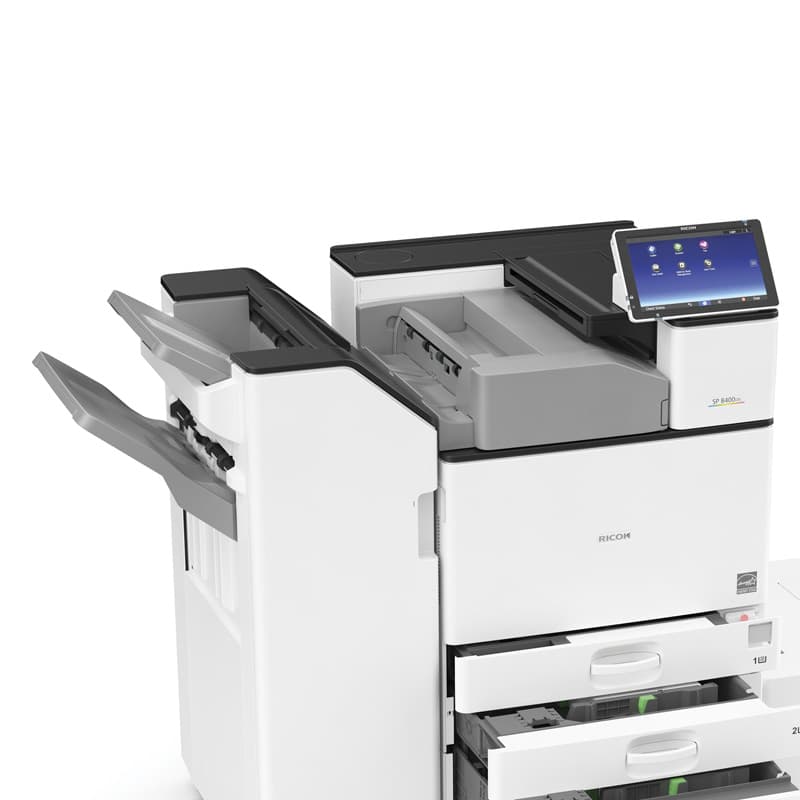

Press forward with personalized performance

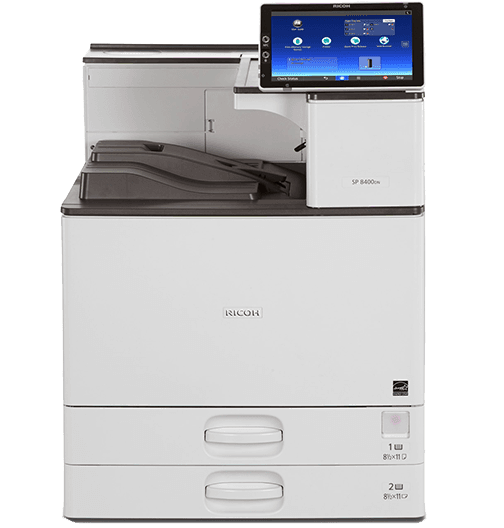

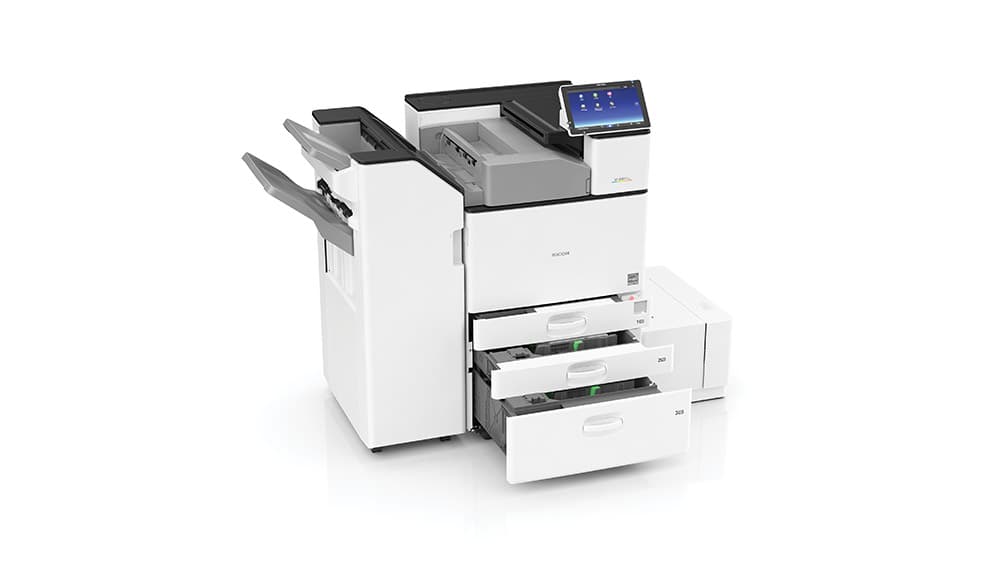

Productivity is within reach. The RICOH® SP 8400DN Black-and-White Laser Printer comes standard with the 10.1" Smart Operation Panel touchscreen. The laser printer can meet almost any deadline with fast print speeds, producing up to 60 black-and-white prints per minute. You can even create print workflow shortcuts to reduce manual steps.

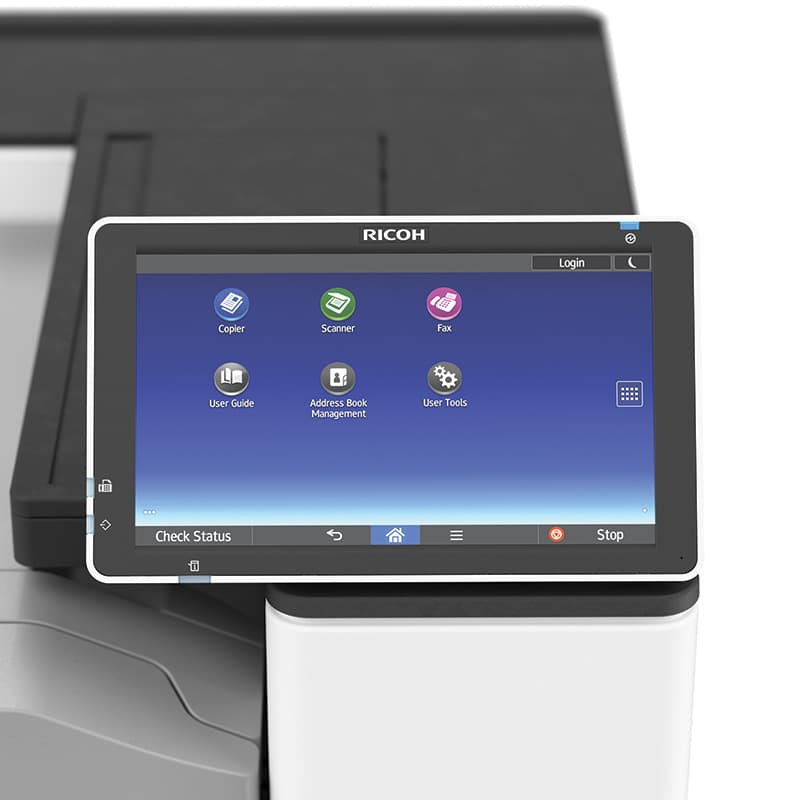

Find the information you need
Use convenient workflow apps and widgets from the Ricoh Application Site, so you can check print settings, preview prints and more. Use the embedded browser to grab information to print from websites or from optional Cloud-based storage applications, such as Google Drive™, Box™ and Dropbox™.

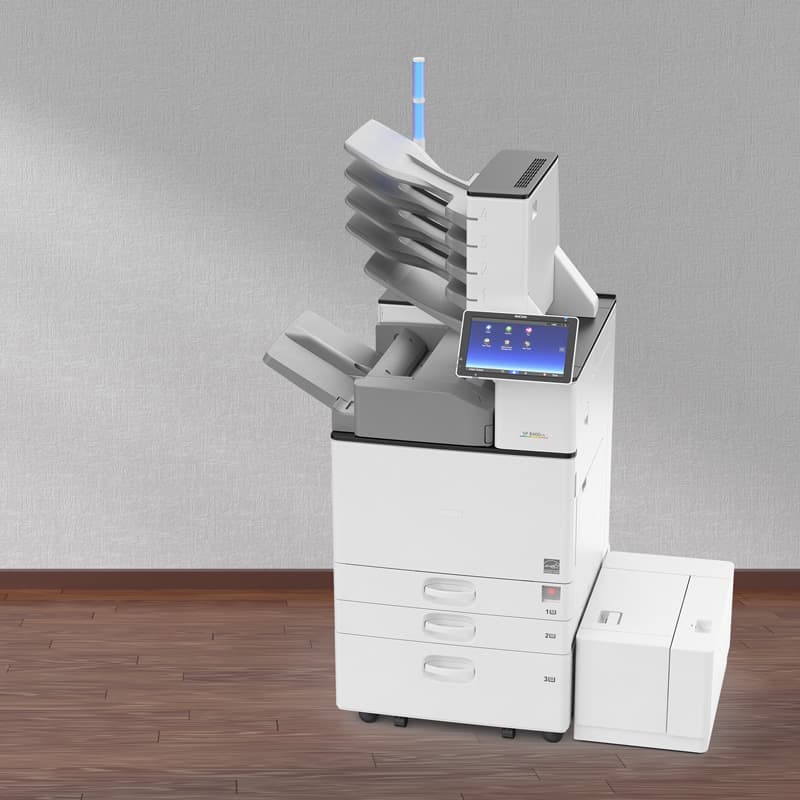

Add volume and enhance information flow
Choose to print in simplex or duplex mode to produce medical records, statements, legal documents and more. Handle multiple print jobs simultaneously in shared use and host print environments via standard 2 GB RAM. Expand paper capacity up to 4,700 sheets with optional paper trays to minimize reloads. Use the optional Attention Light to see printer status from across the room. If a paper misfeed occurs, simply follow the animation guide to resolve it.
Support when you need it*
Maintain maximum uptime with RICOH Intelligent Support capabilities, including Remote Panel Operation. Use it to change settings over the LAN or receive screen-sharing technical support. You can also download the How-To-Video app from the Ricoh Application Site.
*When enabled, internet connection required.
*When enabled, internet connection required.
Make your move with mobile printing
Download the RICOH Smart Device Connector app and connect your smartphone or tablet to the SP 8400DN without drivers, utilities or software. With Near Field Communication (NFC) capability, you can connect by passing your device by the NFC tag or by reading a QR code on the control panel to share files and images directly from your mobile device to the printer.

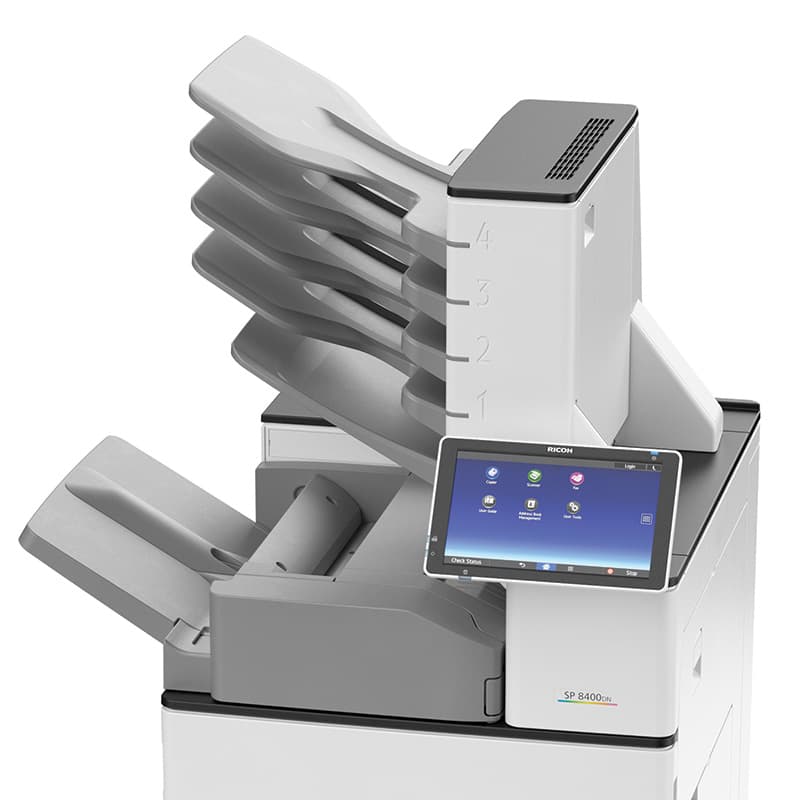

Hands-free finishing
Produce a wide range of documents on multiple paper stocks for financial, medical, legal and other audiences with images and text up to 1200 x 1200 dpi resolution. Automate stapling, hole punching and more via multiple finishing options. Use our unique Internal Multi-fold Unit to create four different types of folds for bulletins, billing statements and more. Create staple-free sets for children or food-based industries with the optional 1,000-Sheet Hybrid Stapleless + Stapler Finisher.
Track devices, documents and data

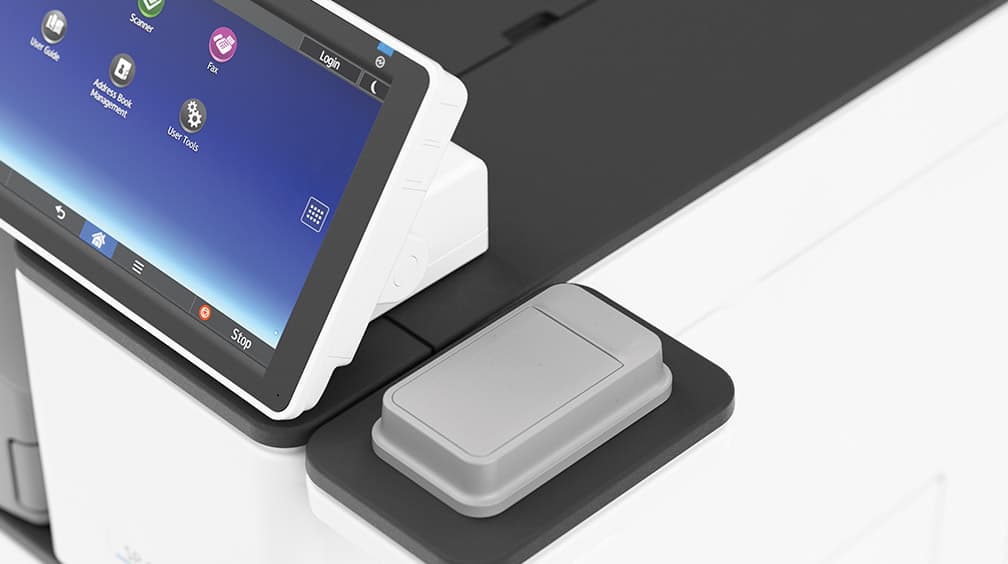

With User Authentication, users login to the device with a pass code, PIN or by swiping an ID card on the optional NFC proximity card reader. Administrators can track activity, set print quotas, or even issue charge-backs with the optional Ricoh Device Manager NX Accounting software. With Locked Print, documents are held until the authorized user releases them. Designate slots on the optional 4-bin Mailbox for more accurate retrieval. Embedded encryption and overwrite tools help protect data in transit and on the hard drive.
Keep resource costs in check
Be smart and save. Use Sleep Mode to reduce energy during working hours. Set duplex printing as the default to reduce paper consumption. The energy-efficient device is also ENERGY STAR® certified and meets EPEAT® Gold criteria.
*https://www.energystar.gov/productfinder/product/certified-imaging-equipment/results
*https://www.energystar.gov/productfinder/product/certified-imaging-equipment/results
Need more information?
Learn more about the SP 8400DN Black and White Laser Printer and how it may fit your business.
| Configuration | Desktop |
|---|---|
| Color / Black & White | Black & White |
| Technology | Electro photographic printing system with laser beam scanning |
| Operation Panel | 10.1" Smart Operation Panel color touchscreen with integrated USB 2.0 host port and SD Card slot |
| Black & White Speed | 60 ppm |
| Maximum Monthly Volume | 53,000 prints |
| First Print Speed | 2.2 seconds or less |
| Warm-Up Time | 21 seconds or less (from Main Switch On) |
| Recovery from Sleep Mode | 7.0 seconds or less |
| Print Resolution | 1200x1200 dpi |
| Standard Paper Capacity | 550-Sheet Paper Tray 1 550-Sheet Paper Tray 2 100-Sheet Bypass Tray (1,200 sheets standard capacity) |
| Maximum Paper Capacity | 4,700 sheets |
| Optional Paper Capacity | 550-Sheet x 2 Paper Feed Unit or 2,000-Sheet Large Capacity Tray (LCT); 1,500-Sheet Large Capacity Tray (LCT) |
| Output Capacity | Standard: 500 sheets, face down (8.5" x 11" or smaller); 250 sheets, face down (8.5" x 14" or larger) Maximum: Up to 4,000 sheets with Finisher, Bridge Unit and 4-Bin Mailbox |
| Supported Paper Sizes | Standard Trays 1 and 2 and Optional Paper Feed Units: User adjustable up to 12" x 17" including Letter (8.5" x 11"), Legal (8.5" x 14"), Exec (10.5" x 7.25"), Ledger (11" x 17"), A3, A4, A5, A6; Custom Sizes: 3.55" x 5.83" — 11.69" x 17" (90 x 148 mm to 297 x 431.8 mm) Envelopes for Tray 2: Com10, Monarch, C5, C6, DL; Envelopes for Optional Paper Feed Units: Com10, C5 Bypass Tray: User adjustable up to 12" x 18" including 5.5" x 8.5" to 11" x 17" (140 x 216 mm to 279 x 432 mm), A3, A4, A5, A6; Custom Sizes: 3.55" x 5.83" to 12" x 23.6" (90 x 148 mm to 305 x 600 mm) and Envelopes: Com10, Monarch, C5, C6, DL Optional 2,000-Sheet LCT and Optional 1,500-Sheet Side LCT: Fixed for Letter (8.5" x 11") (216 x 279 mm), A4 When Duplexing: 3.55" x 5.83" to 11.69" x 17" (90 x 148 mm x 297 x 431.8 mm) |
| Supported Paper Weights | Std. Trays, Opt. PFU and LCTs: 16 - 82 lb. Bond/170 lb. Index (60 - 300 g/m2) Bypass Tray: 14 - 82 lb. Bond/ 170 lb. Index (52 - 300 g/m2) When Duplexing: 14 - 68 lb. Bond/ 140 lb. Index (52 - 256 g/m2) |
| Supported Paper Types | All Sources: Plain Paper, Recycled Paper, Color Paper, Letterhead, Special Paper 1-3, Card Stock, Bond Paper, Preprinted Paper Envelopes: Com10 and C5 envelopes can be fed using Standard Trays, Bypass Tray and Optional Paper Feed Unit Bypass Tray Only: Labels, OHP |
| Duplexing | Automatic (standard) |
| Power Requirements | 120 - 127V, 60Hz, 15A |
| Power Consumption | Operating: 1600W or less Sleep Mode: 0.5 W or less ENERGY STAR® compliant |
| Typical Energy Consumption (TEC) | 0.75 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
| EPEAT status | Gold |
| Dimensions W x D x H | 23.1" x 25.7" x 28.3" (587 x 653 x 720 mm) (Main Unit only) |
| Weight | 125.6 lb. (57 kg) (Main Unit only) |
Mail Box CS3010
ID: 407965
- The 4-Bin Mailbox offers workgroups the ability to separate and stack document output to designated bins directly from the print driver. This option helps keep workflows streamlined and organized.
- Weight: 28.7 lbs. (13 kg)
- W x D x H (inches): 21.9 x 21.4 x 19.9
- W x D x H (mm): 556 x 544 x 505
Notes:
- The Mailbox CS3010 can be installed by itself or simultaneously with either Finisher, the Attention Light or the paper supply options.
Output Jogger Unit Type M25
ID: 417630
- Aligns and stacks output delivered to Finisher SR4150 or Booklet Finisher SR4160.
Bridge Unit BU3070
ID: 417587
- A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for online stapling or hole-punching.
Notes:
- One of the following finishers is required to add this option: Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.
Finisher SR3210
ID: 417483
- 1,000-sheet Finisher.
- For offices that produce collated and stapled sets of documents, the SR3210 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating, as well as a staple-less binding capability of up to 5 sheets.
- Supports Paper Sizes up to 12" x 18".
- Weight: 60 lbs. (27 kg)
- W x D x H (inches): 22.2 x 24.4 x 37.8
- W x D x H (mm): 564 x 620 x 960
Notes:
- 1. Bridge Unit BU3070 is required to add this option.
- 2. Finisher SR3210 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.
Finisher SR3230
ID: 417487
- 3,000-sheet Finisher.
- For offices that produce collated and stapled sets of documents, the SR3230 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating.
- Supports Paper Sizes up to 12" x 18".
- Weight: 74 lbs. (33.5 kg)
- W x D x H (inches): 25.9 x 24.1 x 37.8
- W x D x H (mm): 658 x 612 x 960
Notes:
- 1. Bridge Unit BU3070 is required to add this option.
- 2. Finisher SR3230 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3210, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.
Internal Multi-Fold Unit FD3000
ID: 417838
- Multi-fold option that allows for the creation of professionally designed finished documents such as newsletters, brochures, and sales and marketing materials. Folding patterns include Z-Fold, Half-Fold, Outer Tri-Fold and Inner Tri-Fold.
- Weight: 33 lbs. (15 kg)
- W x D x H (inches): 24.1 x 21.9 x 7.3
- W x D x H (mm): 612 x 556 x 185
Notes:
- 1. Internal Multi-Fold Unit FD3000 cannot be installed with Internal Shift Tray SH3070, Internal Finisher SR3130, or any related options.
- 2. This option or Bridge Unit BU3070 must be installed when adding the following items: Hybrid Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.
Punch Unit PU3050 NA
ID: 416609
- Optional hole punching for the Finisher SR3210 or Booklet Finisher SR3220.
- Supports Paper Sizes up to 11" x 17".
Notes:
- 1. Finisher SR3210 or Booklet Finisher SR3220 is required to for this option.
- 2. Punch Unit PU3050NA cannot be installed with the Internal Finisher SR3130 or Internal Finisher SR3180.
Punch Unit PU3060
ID: 416612
- Optional hole punching unit for Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.
Notes:
- 1. One of the following finishers is required to add this option: Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.
- 2. This option cannot be installed with Finisher SR4080.
Cabinet Type F
ID: 100478FNG
- Provides businesses with a convenient option for the storage of supplies and paper.
- Can only be configured with the standard configuration.
- Weight: 32.3 lbs. (14.7 kg)
- W x D x H (inches): 23.1 x 26.7 x 10
- W x D x H (mm): 587 x 678 x 254
Notes:
- Cabinet Type F cannot be installed with any Paper Feed Unit.
LCIT PB3260
ID: 408116
- Provides an additional 2,000 sheets.
- Paper Sizes up to 8.5" x 11"/A4.
- Paper Weights up to 300 g/m<sup>2</sup>.
- Weight: 48.5 lbs. (22 kg)
- W x D x H (inches): 23.1 x 27 x 9.7
- W x D x H (mm): 587 x 686 x 246
Notes:
- LCIT PB3260 cannot be installed with Paper Feed Unit PB3240, Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.
LCIT RT3030
ID: 416548
- Provides an additional 1,500 sheets.
- Paper Sizes up to 8.5" x 11"/A4.
- Paper Weights up to 80 lb. Bond/166 lb. Index (300 g/m<sup>2</sup>).
- Weight: 21.6 lbs. (9.8 kg)
- W x D x H (inches): 13.4 x 21.4 x 11.4
- W x D x H (mm): 340 x 544 x 290
Notes:
- 1. LCIT RT3030 cannot be installed with any of these Paper Bank options: Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.
- 2. LCIT RT3030 must be configured with either the Paper Feed Unit PB3240 or PB3260.
Paper Feed Unit PB3240
ID: 408112
- Provides an additional 1,100 sheets.
- Paper Sizes up to 12" x 18".
- Paper Weights up to 300 g/m<sup>2</sup>.
- Weight: 48.5 lbs. (22 kg)
- W x D x H (inches): 23.1 x 27 x 9.7
- W x D x H (mm): 587 x 686 x 246
Notes:
- 1. Paper Feed Unit PB3240 cannot be installed with Paper Feed Unit PB3250, Paper Feed Unit PB3260, Caster Table Type M3, or Cabinet Type F.
HDD Option Type P13
ID: MX408078RA
- Required for Sample Print, Locked/Secure Print, HDD Hold & Storage Print, Stored Print, Stored Print (Shared) and Cover Sheet features.
XPS Direct Print Option Type P13
ID: 408071
- Allows for direct printing of XPS type file formats.
Notes:
- XPS Direct Print Option Type P13 cannot be installed with VM Card Type P13.
Extended USB Board Type M19
ID: 417566
- Required for printing from USB Type B port.
Notes:
- Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.
IEEE 1284 Interface Board Type M19
ID: 417596
- For environments that require parallel connectivity.
- Allows device connection with legacy computer equipment.
Notes:
- IEEE 1284 Interface Board Type M19 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
IEEE 802.11a/g/n Interface Unit Type M19
ID: 417493
- This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.
Postscript 3 Unit Type P13
ID: 408095
- Genuine Adobe<sup>®</sup> PostScript<sup>®</sup>3<sup>™</sup>. Recommended for printing more complex B&W and PDF files.
- The SP 8400DN comes with standard PostScript3 Emulation and PDF Direct Print Emulation. This option is available for customers who require True Adobe<sup>®</sup> workflows like Photoshop<sup>®</sup>, Illustrator<sup>®</sup> and PDF/X as well as additional font support. When enabled, the standard PostScript3 Emulation will be disabled.
USB Device Server Option Type M19A
ID: 418105
- An interface board for adding an extra Ethernet port. If you install the USB Device Server Option, you can connect two Ethernet cables simultaneously: one to the machine's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option. An IP address can be assigned to each connection and you can use one machine to print from different network segments.
Notes:
- USB Device Server Option Type M19A cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
Attention Light AL3000
ID: 407964
- The attention light visually alerts operators to changes in status system for prompt attention.
- Weight: .66 lbs. (.3 kg)
- W x D x H (inches): 4 x 4.1 x 23.9
- W x D x H (mm): 102 x 104 x 607
External NFC Card Reader Bracket Type P11
ID: 408066
- Table shaped option used to place either card reader or counter device.
NFC Card Reader Type P11
ID: 408088
- Used to login and authenticate users via NFC card. The card reader and its cable will be covered inside the mainframe when this option is attached.
VM Card Type P13
ID: 408098
- Required to run Java based applications.
Notes:
- 1. HDD Option Type P13 is required to add this option.
- 2. VM Card Type P13 cannot be installed with XPS Direct Print Option Type P13.
