Maintenance & Parts
| Replacement Lamp - Part Number | 512965 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| Projection System | Single Chip Digital Light Processing (DLP) |
| Resolution | WUXGA - 1920 x 1200 dpi |
| Liquid Crystal Panel Size | 0.96" |
| Aspect Ratio | 16:10 |
| White Light Output Brightness | 12,000 lm |
| Color Reproduction | 1.07 billion colors (10-bit)/16,770,000 (8-bit) |
| Contrast Ratio | Up to 5000:1 |
| Screen Size | See Accessories Tab for a complete list of options |
| Projection Modes | Standard, Rear, Ceiling, Rear Ceiling |
| Projection Distance | See Accessories Tab for a complete list of options |
| Lamp Type | Dual High-pressure Mercury |
| Lamp Life | Standard Mode : 1,500 hours Eco Mode : 2,000 hours |
| Projection Lens | Six Optional Types - See Accessories Tab for a complete list of options |
| Projection Ratio | See Accessories Tab for a complete list of options |
| Zoom Ratio | See Accessories Tab for a complete list of options |
| Zoom / Focus | Motorized |
| Keystone Vertical/Horizontal | +/- 20 degrees |
| Video Compatible Signal | NTSC, PAL, SECAM, HDTV, EDTV, SDTV |

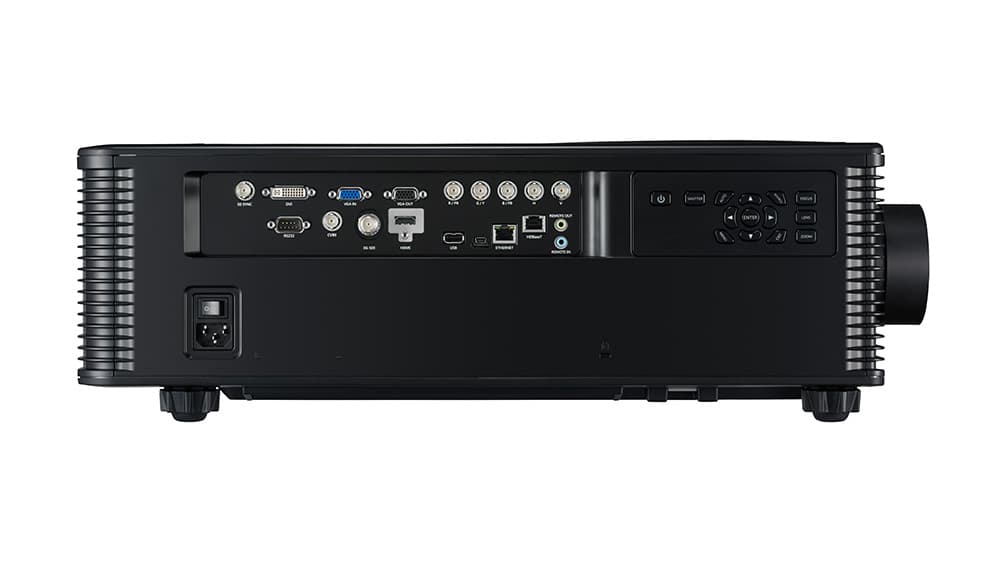

| Image Input | HDMI x 1 DVI-D x 1 VGA x 1 5BNC x1 3G-SDI IN x1 3.5mm stereo female x1 |
| Image Output | VGA x 1 3.5mm stereo female x1 |
| USB | 3D Synch x 1 USB Type A x 1(for service) USB mini-B x 1 (for service) D-SUB 9 pin RS232 port x 1 |
| Wired LAN | RJ45 x 1 (compatible with HDBaseT) RJ45 x 1 |
| Advanced Network Utility | NA |
| JPEG Conversion Tool | N/A |
| Projector Management Utility | Windows Server 2008, Windows Server 2008(x64), Windows Server 2008 R2(64-bit), Windows 8.1, Windows 8.1(x64), Windows 8, Windows 8(x64), Windows 7, Windows 7(x64), Windows Vista, Windows Vista(x64) |
| Supported Utilities | Crestron, PJLink, AMX |
| Features | 360 degree tilt free, Portrait mode, Blending, Geometric correction, Picture-in-Picture (PIP), Picture-Beside-Picture (PBP) |
| Built-in Speaker | N/A |
| Dimensions W x D x H | 20.5” x 23.3” x 7.6” (520 x 591 x 194 mm) |
| Weight | 52.4 lbs. (23.8 kg) |
| Fan Noise | Standard Mode : 41 dB or less Eco Mode : 38 dB or less |
| Operating Environment | Temperature 14° - 140° F; Humidity: 5 - 90% |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode: 1,150W; Eco Mode: 920W |
| Whats In the Box | CD-ROM with user manual, Quick start guide, VGA cable, DVI-HDMI adapter, Power cord, Warranty sheet and registration (US only), Remote control and batteries |
Replacement Color Wheel
ID: 512981
Replacement Lens Type B1 (Short Zoom)
ID: 512959
- Focal Length: 21.5 - 28.7
- F Number: 2
- Zoom Ratio: 1.2x
- Zoom and Focus Adjustment: Motorized
- Lens Shift Range: Vertical: +/-13%, Horizontal: +/-5%
- Projection Ratio: 0.84 - 1.02
- Throw Distance: 35.4" - 433" (0.9 - 11m)
- Projection Image Size (Diagonal): 50 – 500 inch
Replacement Lens Type B2 (Wide Zoom)
ID: 512960
- Focal Length: 21.5 - 28.7
- F Number: 2
- Zoom Ratio: 1.33x
- Zoom and Focus Adjustment: Motorized
- Lens Shift Range: Vertical: +/-13%, Horizontal: +/-5%
- Projection Ratio: 1.02 - 1.36
- Throw Distance: 43.3" - 578.7" (1.1 - 14.7m)
- Projection Image Size (Diagonal): 50 – 500 inch
Replacement Lens Type B3 (Wide Zoom)
ID: 512961
- Focal Length: 25.5 - 31.8
- F Number: 2
- Zoom Ratio: 1.25x
- Zoom and Focus Adjustment: Motorized
- Lens Shift Range: Vertical: +/-60%, Horizontal: +/-25%
- Projection Ratio: 1.2 - 1.5
- Throw Distance: 51.2" - 637.8" (1.3 - 16.2m)
- Projection Image Size (Diagonal): 50 – 500 inch
Replacement Lens Type B4 (Standard)
ID: 512962
- Focal Length: 31.8 - 42.1
- F Number: 2
- Zoom Ratio: 1.33x
- Zoom and Focus Adjustment: Motorized
- Lens Shift Range: Vertical: +/-60%, Horizontal: +/-25%
- Projection Ratio: 1.5 - 2.0
- Throw Distance: 63" - 846.5" (1.6 - 21.5m)
- Projection Image Size (Diagonal): 50 – 500 inch
Replacement Lens Type B5 (Standard Zoom)
ID: 512963
- Focal Length: 42.4 - 84.5
- F Number: 2
- Zoom Ratio: 2x
- Zoom and Focus Adjustment: Motorized
- Lens Shift Range: Vertical: +/-60%, Horizontal: +/-25%
- Projection Ratio: 2.0 - 4.0
- Throw Distance: 86.6" - 1,696.8" (2.2 - 43.1m)
- Projection Image Size (Diagonal): 50 – 500 inch
Replacement Lens Type B6 (Long Zoom)
ID: 512964
- Focal Length: 84.1 - 149.8
- F Number: 2
- Zoom Ratio: 1.8x
- Zoom and Focus Adjustment: Motorized
- Lens Shift Range: Vertical: +/-60%, Horizontal: +/-25%
- Projection Ratio: 4.0 - 7.2
- Throw Distance: 169.3" - 3,055.1" (4.3 - 77.6m)
- Projection Image Size (Diagonal): 50 – 500 inch
ESP AC1 Power Filter
ID: ESPAC1
- The affordable ESP AC1 power filter provides multi-stage overload protection for output devices. Our Advanced Technical Support (ATS) recommends the use of overload protection products to minimize potential electrical interference with products.
Notes:
- The ESP AC1 power filter can not be installed with the ESP XG-PCS-15D.
