| Replacement Lamp - Part Number | 513744 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| Projection System | Digital Light Processing (DLP) |
| Resolution | SVGA 800 x 600 dpi |
| Liquid Crystal Panel Size | 0.55" |
| Aspect Ratio | 4:3 |
| White Light Output Brightness | 3,000 lm |
| Color Reproduction | 1.07 billion colors (10 bit)/16,770,000 (8 bit) |
| Contrast Ratio | Native: 2200:1 High Contrast Mode: 100000:1 |
| Screen Size | 30" - 300" |
| Projection Modes | Standard, Rear, Ceiling, Rear Ceiling |
| Projection Distance | 46.8" - 480" (3.9 ft - 40.0 ft) |
| Lamp Type | High-Pressure Mercury |
| Lamp Life | Standard Mode: 5,000 hours Eco Mode: 6,000 hours |
| Projection Lens | Fixed |
| Lens Shift/Method | N/A |
| Projection Ratio | 1.95 - 2.15 |
| Zoom Ratio | 1.1x |
| Zoom / Focus | Manual/Manual |
| Keystone Vertical/Horizontal | Manual: Vertical Only |
| Video Compatible Signal | NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43 (60Hz/50Hz) |

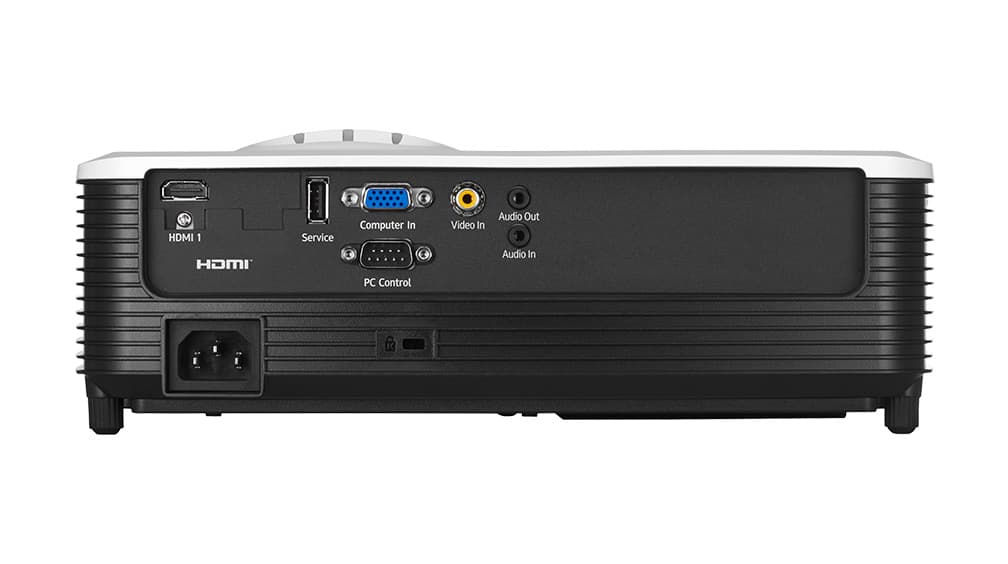

| Connection Terminals | Input Interfaces: HDMI x 1 VGA x 1 Composite x 1 |
| Audio Input | 3.5 mm diameter stereo mini jack x 1 |
| Audio Output | 3.5mm stereo x1 (audio out) |
| PC Control | D-sub 9 x 1 (RS-232C) |
| USB | USB Type A x 1 |
| Advanced Network Utility | N/A |
| JPEG Conversion Tool | N/A |
| Projector Management Utility | N/A |
| Features | AV Mute (Blank), Freeze, Re-size (Magnify), Keystone (Manual Only), Password Protection, Wall Color Mode, Kensington Lock, Eco Mode, 3D Projection Ready |
| Built-in Speaker | 2W Mono |
| Dimensions W x D x H | 11.74" x 9.33" x 4.14" (298 x 237 x 105 mm) |
| Weight | 5.74 lbs (2.6 kg) |
| Fan Noise | Standard Mode : 34 dB or less Eco Mode : 31 dB or less |
| Operating Environment | Temperature -4°F - 140°F; Humidity: 20 ~ 80% |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode: 262W or less; Eco Mode: 216W or less |
| Whats In the Box | CD-ROM with user manual, Quick Start Guide, RGB cable, Power cord, Warranty sheet and registration (US only), Remote control and batteries |
