| Projection System | 3 LCD Technology |
|---|---|
| Resolution | WUXGA - 1920 x 1200 dpi |
| Liquid Crystal Panel Size | 0.76" |
| Aspect Ratio | 16:10 |
| White Light Output Brightness | 3,600 lm |
| Color Reproduction | 1.07 billion colors |
| Contrast Ratio | Native: Up to 450:1 High Contrast Mode: 2500000:1 |
| Screen Size | 70" – 130" |
| Projection Modes | Normal, Rear, Ceiling, Rear Ceiling |
| Projection Distance | 16" – 32" |
| Lamp Type | Yellow (HLD), Blue (LED) |
| Projection Lens | Fixed |
| Lens Shift/Method | Manual |
| Projection Ratio | 0.27 – 0.29 |
| Zoom Ratio | 1.05x |
| Zoom / Focus | Manual/Manual |
| Keystone Vertical/Horizontal | Vertical: +/-3%, Horizontal: +/-2% |
| Video Compatible Signal | NTSC, PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC4.43 |

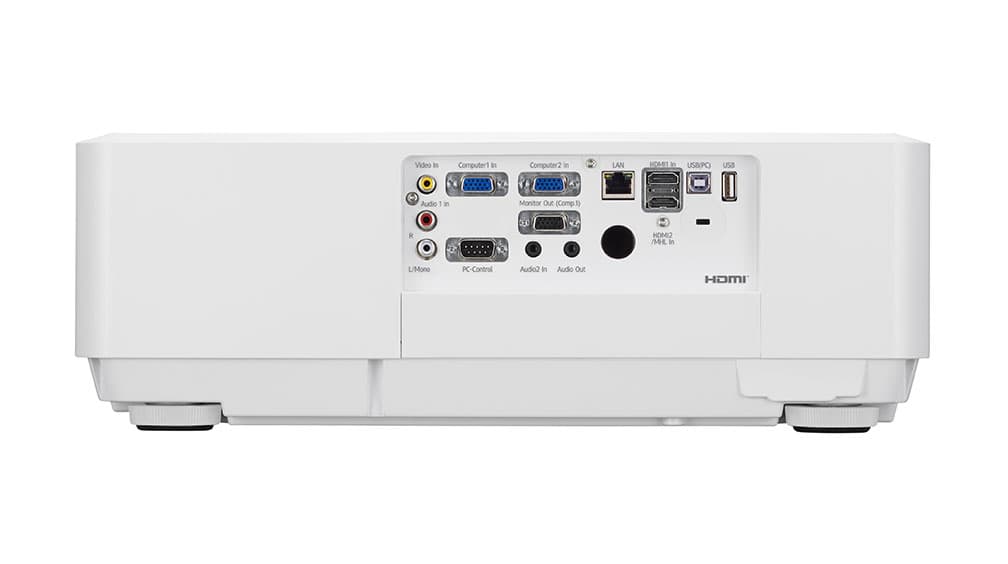

| Connection Terminals | Input Interfaces: HDMI x 1 HDMI (MHL) x 1 VGA x 2 Composite x 1 USB Type A x 1 USB Type B x 1 LAN x 1 |
| Audio Input | 3.5mm Mini Jack x 1; RCA Jack x 1 |
| Audio Output | 3.5mm stereo x1 (audio out) |
| PC Control | LAN (RJ45) x 1 (Shared with input terminal), PC Control (RS-232C) x 1 |
| USB | USB Type A x 1 USB Type B x 1 |
| Wired LAN | RJ45 x1 (LAN) |
| Advanced Network Utility | N/A |
| JPEG Conversion Tool | N/A |
| Projector Management Utility | Windows Vista (32-bit/64bit version), Windows 7 (32-bit/64bit version), Windows 8 (32-bit/64bit version), Windows 8.1 (32-bit/64bit version), Windows 10 (32-bit/64bit version), Windows Server 2008 SP2 (32-bit/64bit version), Windows Server 2008 R2 Standard SP1 (64bit version) |
| Supported Utilities | PJ Link, Crestron, AMX Discovery, Extron |
| Features | Four Corners Keystone, 360-degree Projection, Color Adjustment, Auto Ceiling, Auto Power Off Mode, Picture Mode, Wall Color Adjustment, Kensington Lock |
| Built-in Speaker | 10W Stereo |
| Dimensions W x D x H | 17.7" x 16.7" x 6.0" (449 x 425 x 153 mm) |
| Weight | 24 lbs. (10.9 kg) |
| Fan Noise | Standard Mode : 37.5 dB or less Eco Mode : 33.5 dB or less |
| Operating Environment | Operational Temperatures: 32° to 104°F (0° to 40°C), up to 85% humidity (non-condensing) Storage Temperatures: -4° to 140°F (-20° to 60°C), up to 85% humidity (non-condensing) |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode: 439 – 442W Eco Mode: 307W |
| Whats In the Box | CD-ROM with User Manual, Quick Start Guide, RGB Cable, Power Cord, Remote Control and Batteries, Warranty Sheet and Registration (U.S. Only) |
