| Projection System | Digital Light Processing (DLP) |
|---|---|
| Resolution | WUXGA - 1920 x 1200 dpi |
| Liquid Crystal Panel Size | 0.67" |
| Aspect Ratio | 16:10 |
| White Light Output Brightness | 5,200 lm |
| Color Reproduction | 1.07 billion colors (10 bit)/16,770,000 (8 bit) |
| Contrast Ratio | Native: 1800:1 High Contrast Mode: 100000:1 |
| Screen Size | 30" - 300" |
| Projection Modes | Standard, Rear, Ceiling, Rear Ceiling |
| Projection Distance | 50.76" -361.08" (4.23 ft - 30.09 ft) |
| Lamp Type | Laser diodes |
| Lamp Life | Up to 20,000 hours |
| Projection Lens | Lens: Fixed (Built-in) Lens Shift (V/H): Vertical: +20%, Horizontal: +/- 10% |
| Projection Ratio | 1.2 - 2.13 |
| Zoom Ratio | 1.8 |
| Zoom / Focus | Manual/Manual |
| Keystone Vertical/Horizontal | Vertical: +/- 30 degrees, Horizontal: +/- 30 degrees |
| Video Compatible Signal | NTSC, PAL, SECAM, HDTV, EDTV, SDTV |

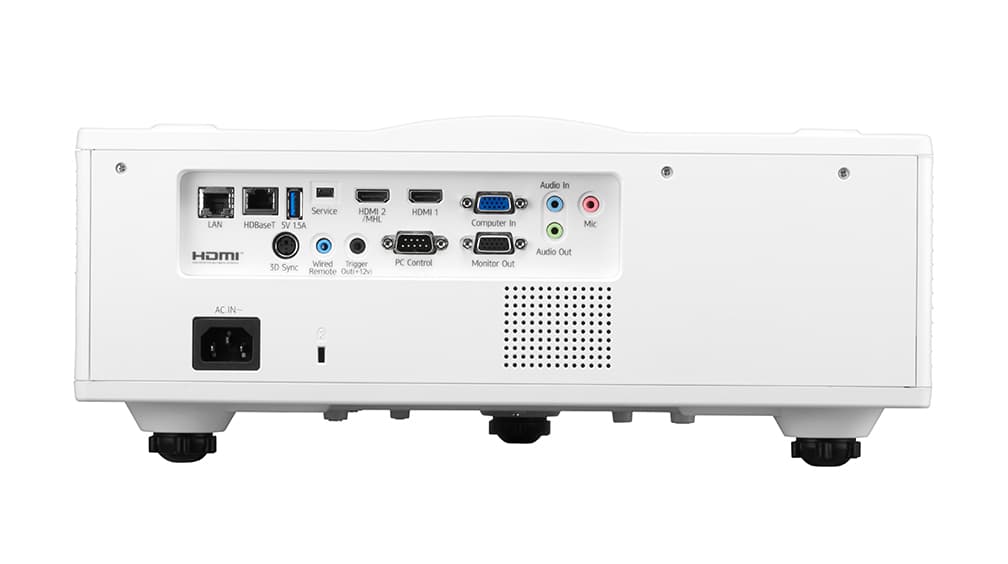

| Image Input | HDMI/MHL x1, HDMI x1, VGA x1, RJ45 x1 (compatible with HDBaseT) |
| Audio Input | 3.5mm jack x1 (audio in), 3.5mm jack x1 (microphone) |
| Audio Output | 3.5mm stereo x1 (audio out) |
| PC Control | RS-232C x1, Mini DIN3 (VESA 3D sync) x1, 3.5mm jack (+12v Trigger Out) x1, 3.5mm jack (Wired Remote) x1 |
| USB | Mini USB x1, USB Type A x2 (power) |
| Wired LAN | RJ45 x1 (LAN) |
| Advanced Network Utility | N/A |
| JPEG Conversion Tool | N/A |
| Projector Management Utility | Windows Server 2008, Windows Server 2008(x64), Windows Server 2008 R2(64bit), Windows 8.1, Windows 8.1(x64),Windows 8, Windows 8(x64), Windows 7, Windows 7(x64), Windows Vista, Windows Vista(x64) |
| Supported Utilities | PJ Link, Crestron, AMX Discovery |
| Features | Picture-in-Picture, Picture-by-Picture, 360-degree projection, Portrait mode, Color adjustment, Eco Mode, Firmware Update |
| Built-in Speaker | 10W Stereo |
| Dimensions W x D x H | 16" x 15.24" x 6.54" (405 x 387 x 166mm) |
| Weight | 25.14 lbs (11.4 kg) |
| Fan Noise | Standard Mode: 35 dB; Eco Mode: 29 dB |
| Operating Environment | Temperature -4°F - 140°F; Humidity: 5 ~ 95% |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode: 465W or less; Eco Mode: 285W or less |
| Whats In the Box | CD-ROM with user manual, Quick Start Guide, RGB cable, Power cord, Warranty sheet and registration (US only), Remote control and batteries, Micro USB to USB Type A Cable |
