| Projection System | Single Chip Digital Light Processing (DLP) |
|---|---|
| Resolution | WXGA - 1280 x 800 |
| Liquid Crystal Panel Size | 0.45" |
| Aspect Ratio | 16:10 |
| White Light Output Brightness | 600 lm |
| Color Reproduction | 16,700,000 Colors (24-bit) |
| Contrast Ratio | Native: 600:1 High-Contrast Mode: 40,000:1 |
| Screen Size | 50 – 100" (Optical)/25 – 200" (Mechanical) |
| Projection Modes | Front and Rear |
| Projection Distance | 16.9” – 135.4” (0.43 – 3.44m) |
| Lamp Type | RGB LED |
| Lamp Life | Bright Mode : 20,000 hours; Eco Mode : 30,000 hours |
| Projection Lens | Fixed |
| Lens Shift/Method | N/A |
| Projection Ratio | 0.8 |
| Zoom Ratio | N/A |
| Zoom / Focus | Fixed/Manual |
| Keystone Vertical/Horizontal | Vertical: +/- 40 degrees |
| Video Compatible Signal | NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43 (60Hz/50Hz) |

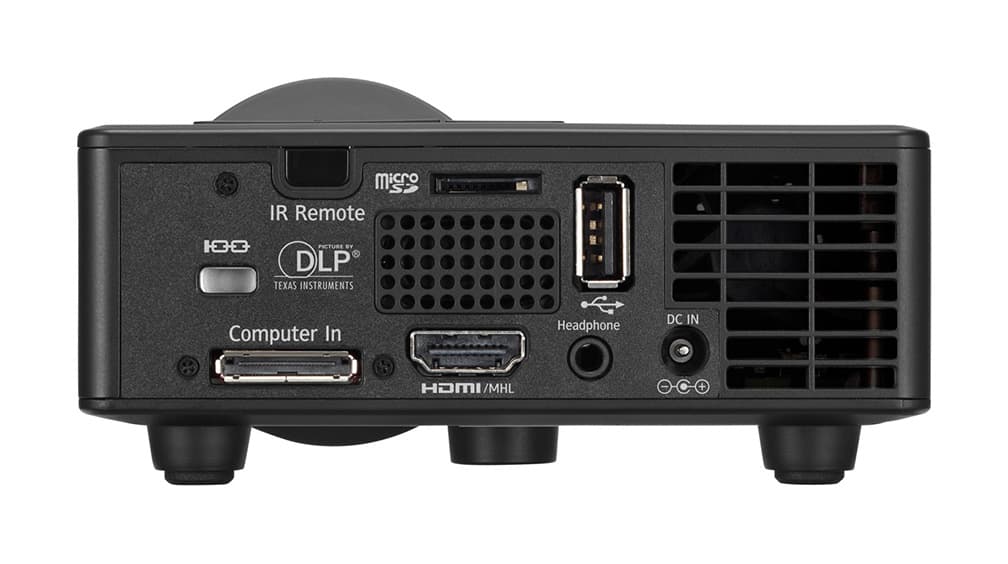

| Connection Terminals | Input Interfaces: HDMI (MHL) x 1 USB-A x 1 VGA x 1 (Computer IN) Micro SD Card x 1 (Read only) Output Interfaces: Phone OUT x 1 (3.5mm Mini Jack) Network Interfaces Wireless LAN x 1 (Available with HDMI Wi-Fi) |
| Advanced Network Utility | N/A |
| JPEG Conversion Tool | N/A |
| Projector Management Utility | N/A |
| Features | AV Mute (Blank), Re-size (Magnify), Auto Keystone, Password Protection, Wall Color Mode, Kensington Lock, User Logo, Eco Mode, 3D Projection Ready (DLP Link only), Firmware Update, Tilt Adjustment Feet |
| Built-in Speaker | 1.5W |
| Dimensions W x D x H | 4.4" x 4.1" x 2" (112.5 x 105 x 50.5 mm) |
| Weight | 1 lb. (0.45 kg) |
| Fan Noise | Standard Mode : 34 dB or less Eco Mode : 24 dB or less |
| Operating Environment | Operational Temperatures: 41° to 104°F (5° to 40°C), 20% to 80% humidity (non-condensing) Storage Temperatures: -4° to 140°F (-20° to 60°C), 20% to 80% humidity (non-condensing) |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode : 65W; Eco Mode : 18W; Stand By Mode: Less than 0.5W |
| Whats In the Box | CD-ROM with user manual, Quick start guide, RGB cable, AC adaptor and power cord, Warranty sheet and registration (US only), Carrying bag, Lens cap, Remote control and Coin batteries |
