| Projection System | Single Chip Digital Light Processing (DLP) |
|---|---|
| Resolution | WXGA - 1280 x 800 dpi |
| Liquid Crystal Panel Size | 0.65" |
| Aspect Ratio | 16:10 |
| White Light Output Brightness | 3,200 lm |
| Color Reproduction | 1.07 billion colors |
| Contrast Ratio | Up to 13,000:1 |
| Screen Size | 69.4 – 100” |
| Projection Modes | Front, Front Ceiling, Rear, Rear Ceiling |
| Projection Distance | 30.7" – 44.1" (0.78 – 1.12 m) |
| Lamp Type | 3.5 W Laser x 19 pcs |
| Lamp Life | Up to 20,000 hours |
| Projection Lens | Fixed |
| Lens Shift/Method | N/A |
| Projection Ratio | 0.521 |
| Zoom Ratio | N/A |
| Zoom / Focus | Fixed/Manual |
| Keystone Vertical/Horizontal | Vertical: +/- 10 degrees |
| Video Compatible Signal | NTSC, PAL, SECAM, HDTV, EDTV, SDTV |

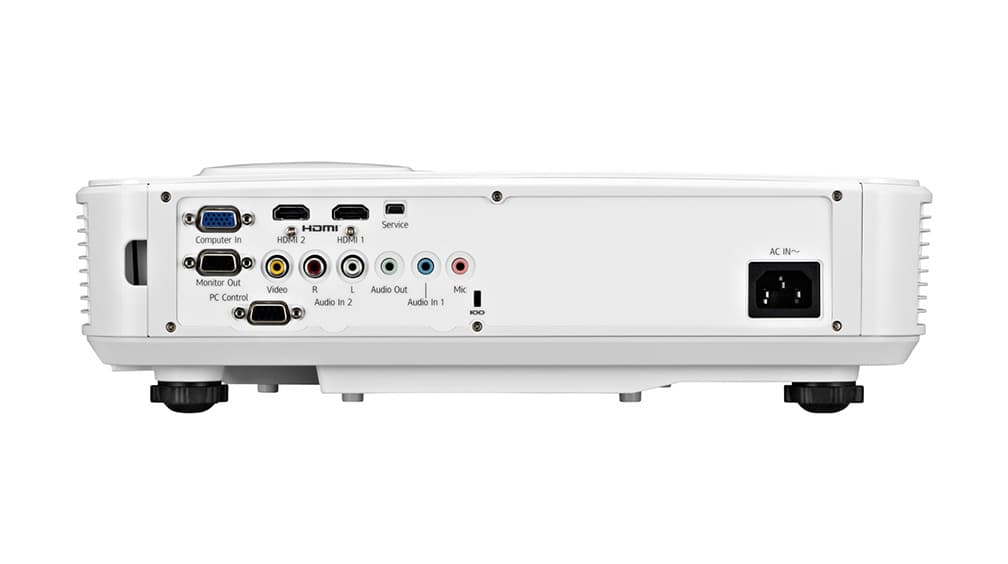

| Connection Terminals | Input Interfaces: HDMI x 2 VGA x 1 Composite x 1 RS232C x 1 Audio In x 1 Audio In R x 1/Audio In L x 1 Microphone x 1 Output Interfaces: VGA x 1 Audio Out x 1 |
| Advanced Network Utility | N/A |
| JPEG Conversion Tool | N/A |
| Projector Management Utility | N/A |
| Supported Utilities | N/A |
| Features | AV Mute (Blank), Freeze, Re-size (Magnify), Wall Color Mode, Security Bar, Kensington Lock, User Logo, Eco Mode, 3D Projection Ready, Firmware Update (RS232C), Auto Power Off, High Altitude Mode, Tilt Adjustment Feet |
| Built-in Speaker | 10W |
| Dimensions W x D x H | 15" x 12.1" x 3.3" (383 x 308 x 85 mm) |
| Weight | 12.2 lbs. (5.5 kg) |
| Fan Noise | Standard Mode: 36 dB or less Eco Mode: 32 dB or less |
| Operating Environment | Operational Temperatures: 41° to 104°F (5° to 40°C), 5% to 95% humidity (non-condensing) Storage Temperatures: -4° to 140°F (-20° to 60°C), 20% to 80% humidity (non-condensing) |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode: 330W; Eco Mode: 210W; Stand By Mode: Less than 0.5W |
| Whats In the Box | CD-ROM with user manual, Quick Start Guide, RGB Cable, Power Cord, Lens Cap, Warranty sheet and registration (US only), Remote Control and batteries |
ESP AC1 Power Filter
ID: ESPAC1
- The affordable ESP AC1 power filter provides multi-stage overload protection for output devices. Our Advanced Technical Support (ATS) recommends the use of overload protection products to minimize potential electrical interference with products.
Notes:
- The ESP AC1 power filter can not be installed with the ESP XG-PCS-15D.
