Maintenance & Parts
| Replacement Lamp - Part Number | 512984 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| Projection System | Single Chip Digital Light Processing (DLP) |
| Resolution | XGA - 1024 x 768 dpi |
| Liquid Crystal Panel Size | 0.55" |
| Aspect Ratio | 4:3 |
| White Light Output Brightness | 3,000 lm |
| Contrast Ratio | 2200:1 |
| Screen Size | 30" - 300" |
| Projection Modes | Standard, Rear, Ceiling, Rear Ceiling |
| Projection Distance | 47.24" - 515.75" (1.2 – 13.1 meters) |
| Lamp Type | High-Pressure Mercury |
| Lamp Life | Standard Mode: 4,500 hours Eco Mode: 6,000 hours |
| Projection Lens | Lens: Built-in Keystone: Manual: Vertical Only Shift/Method: N/A Zoom Ratio: 1:1 Zoom/Focus: Manual/Manual |
| Projection Ratio | 1.95 - 2.15 |
| Video Compatible Signal | NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 60Hz, 50Hz |

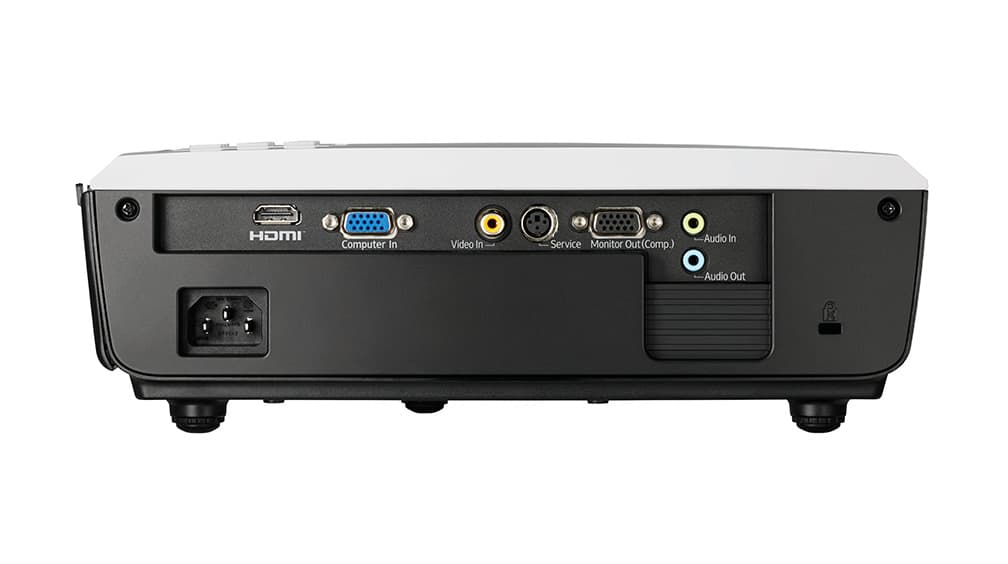

| Connection Terminals | Input Signals: NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 60Hz, 50Hz Image Input: Mini D-SUB 15 pin x 1, HDMI x 1 Image Output: Mini D-SUB 15 pin x 1 S-Video N/A Video Input: RCA x 1 Audio Input 1: 3.5 mm diameter mini jack Audio Input 2: N/A Audio Output: 3.5 mm diameter mini jack HDMI: HDMI (Type A) x 1 Microphone Input: N/A USB: N/A Wired LAN: N/A Wireless LAN: N/A PC Control: N/A Other Ports: RS-232C 3 pin x 1 (Service Only) |
| Advanced Network Utility | N/A |
| JPEG Conversion Tool | N/A |
| Projector Management Utility | N/A |
| Features | AV Mute (Blank), Freeze, Re-size (Magnify), Keystone (Manual Only), Password Protection, Wall Color Mode, Kensington Lock, Eco Mode, 3D Projection Ready |
| Built-in Speaker | 2W Mono |
| Dimensions W x D x H | 11.26" x 3.94" x 8.19" (286 x 100 x 208 mm) |
| Weight | 5.2 lbs. (2.4 kg) |
| Fan Noise | Standard Mode: 36 dB or less Eco Mode: 31 dB or less |
| Operating Environment | Temperature -4°F ~ 140°F; Humidity: 20 ~ 80% |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | Standard Mode: 248W (Typ.) 266W (Max); Eco Mode: 210W; Standby Mode: 0.5W |
| Whats In the Box | CD-ROM with user manual, Quick start guide, RGB cable, Power cord, Warranty sheet and registration (US only), Remote control and batteries, Lens cover |
ESP AC1 Power Filter
ID: ESPAC1
- The affordable ESP AC1 power filter provides multi-stage overload protection for output devices. Our Advanced Technical Support (ATS) recommends the use of overload protection products to minimize potential electrical interference with products.
Notes:
- The ESP AC1 power filter can not be installed with the ESP XG-PCS-15D.
