| Replacement Lamp - Part Number | 308933 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| Projection System | 3LCD Technology |
| Resolution | XGA - 1024 x 768 dpi |
| Liquid Crystal Panel Size | 0.79" |
| Aspect Ratio | 4:3 |
| White Light Output Brightness | 6,000 lm (standard lens) |
| Contrast Ratio | 2000:1 |
| Screen Size | 30" - 500" |
| Lamp Type | High-pressure mercury (Standard Mode: 330W; Eco Mode: 264W) |
| Lamp Life | Standard Mode: 3,000 hours, Eco Mode: 4,000 hours |
| Zoom Ratio | 2:0 (standard lens) |
| Zoom / Focus | Manual/Manual |
| Video Compatible Signal | NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL-60 |
| Analog RGB Compatible Scanning Frequency | Horizontal: 15 - 108KHz (RGB: 24KHz - 10KHz) Vertical: 48 - 120Hz |

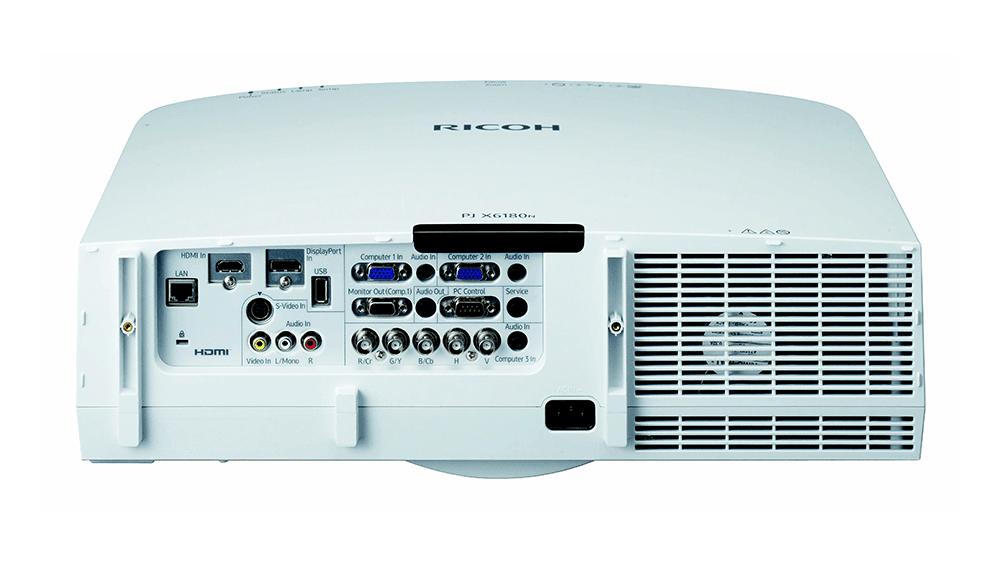

| Image Input | Mini D-Sub 15-pin x 2, RCA x 1, S-VIDEO x 1, HDMI type A x 1, Display Port x 1, 5BNC x 1 |
| Image Output | Mini D-Sub 15-pin x 1 |
| Audio Input | 3.3mm Stereo Mini-pin Jack x 3, RCA (L/R) x 2 |
| Audio Output | 3.5mm Stereo Mini-pin Jack x 1 |
| PC Control | Mini D-Sub 9 x 1 |
| USB | TYPE-A x 1 (USB 2.0 High-Speed) |
| Wired LAN | RJ45 (10BASE-T/100BASE-TX/1000BASE-T x 1) |
| Wireless LAN | Optional IEEE 802.11b/g/n compliant |
| Built-in Speaker | 10W Mono |
| Dimensions W x D x H | 19.6" x 14.1" x 5.6" (499 x 359 x 144 mm) |
| Weight | 16.9 lbs. (7.7 kg) |
| Fan Noise | Standard Mode: 38 dB; Eco Mode: 31 dB |
| Power Supply | 100/240V; 50/60 Hz |
| Power Consumption | Standard Mode: 464W or less; Eco Mode: 372W or less; Standby: Less than 0.2W |
| Whats In the Box | Remote control, RGB cable, power code, quick setup guide, remote mouse receiver, CD-ROM (User Manual, Projection utility, Advanced Network utility, JPEG conversion software, Projector Management utility) |
Replacement Lens Type 1 (Fixed Short Throw Lens)
ID: 308935
- Screen Size (Performance Guarantee Range): 40 – 150 inch (60 – 150 inch)
- Light Output for PJ WX6181N/PJ WU6181N: 4,700lm/4,200lm
Replacement Lens Type 2 (Zoom Lens)
ID: 308936
- Screen Size (Performance Guarantee Range): 30 – 500 inch (40 – 200 inch)
- Light Output for PJ WX6181N/PJ WU6181N: 5,000lm/4,600lm
- Zoom Ratio: 1.3
Replacement Lens Type 3 (Zoom Lens)
ID: 308937
- Screen Size (Performance Guarantee Range): 60 – 500 inch (60 – 200 inch)
- Light Output for PJ WX6181N/PJ WU6181N: 5,100lm/4,700lm
- Zoom Ratio: 1.6
Replacement Lens Type 4 (Zoom Lens)
ID: 308938
- Screen Size (Performance Guarantee Range): 60 – 500 inch (80 – 200 inch)
- Light Output for PJ WX6181N/PJ WU6181N: 5,000lm/4,600lm
- Zoom Ratio: 1.52
Standard Lens Type 1 (Zoom Lens)
ID: 308934
- Screen Size (Performance Guarantee Range): 40 – 500 inch (40 – 200 inch)
- Light Output for PJ WX6181N/PJ WU6181N: 6,700lm/6,200lm
- Zoom Ratio: 2.0
