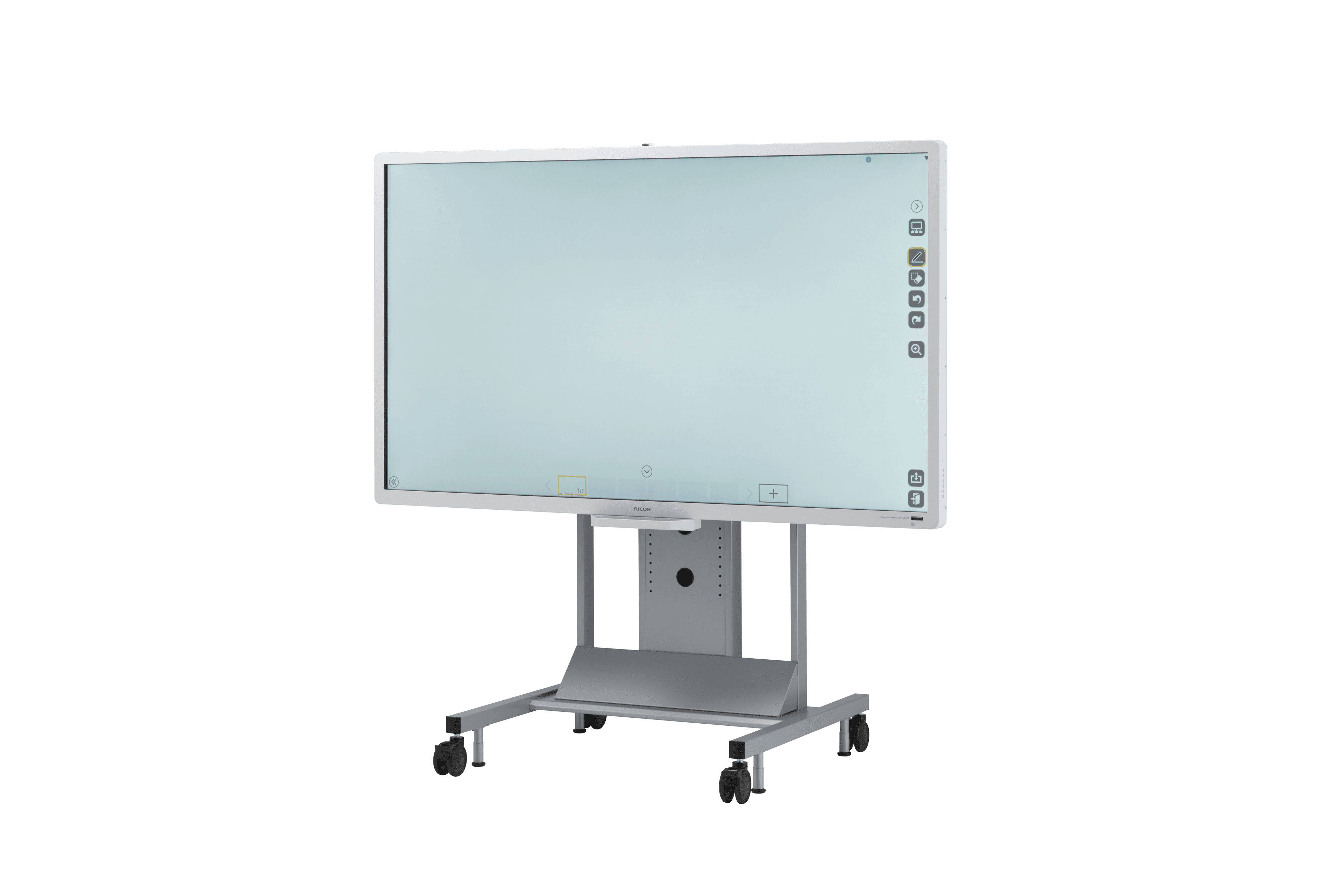

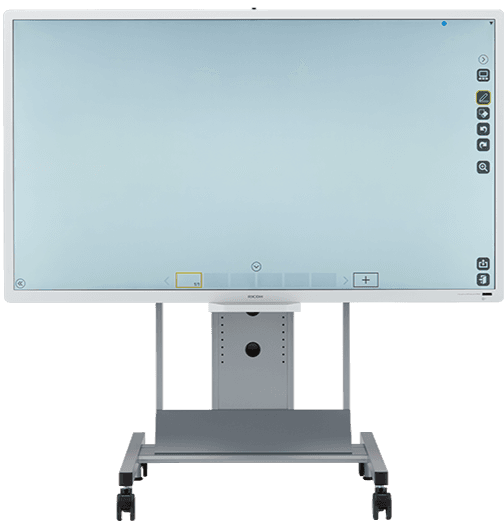

D8400 for Business

Interactive Whiteboard

ID: 432144

Select from the options below for support and more

Download Manuals

How-To-Videos

Learn about common tasks, topics and features as explained in more than 150 short video tutorials for our most popular devices.

Download Brochure

MyRicoh

If you are a current Ricoh Customer, you can use MyRicoh to get support for your products, purchase supplies, and much more.

RICOH Interactive Whiteboard Controller Type1

Download and install additional drivers, associated software and utilities for your device.

RICOH Interactive Whiteboard Controller Type2

Download and install additional drivers, associated software and utilities for your device.

Technology	Infrared touch
Touch Points	Standalone: 10, With Controller: 2 (1 point for drawing, 2 points for gesture operation)
Touch Pen Request	>= 10 mm
Accuracy	+/-10 mm in touchable areas
Operating System	Single-touch: Windows 7 Home Basic/Home Premium/Ultimate/Professional; Windows 8 and 8.1 Pro/Enterprise; Windows Embedded Standard 7 P and 8; Mac OS 10.8 and later Multi-touch: Windows 7 Home Premium/Ultimate/Professional; Windows 8 and 8.1 Pro/Enterprise; Windows Embedded Standard 7 P and 8
Touch Output	USB 2.0 (Type B)
Cover Glass	Pretreated anti-glare 4 mm thick

Video Input	Display unit: Mini D-SUB15pin x 1, HDMI (HDCP x 1), HDMI (PC)* x 1, DVI-D (HDCP x 2), DisplayPort (HDCP x 1), Composite x 1, Component x 1, S-Video x 1
Video Output	HDMI x 1, DVI-D x 1
Audio Output	Pin plugs (R+L) and terminals for 12W + 12W speakers
Interfaces	USB 2.0 TYPE B x 1 for touch control;USB 2.0 TYPE A x 2;USB 3.0 TYPE A x 1
Dimensions W x D x H	76.2" x 5.16" x 44.65" (1,935 x 131 x 1,134 mm)
Weight	228.8 lbs. (104 kg) (Display only)
Power Source	100 - 240 V, 50/60 Hz
User functions	Only with controller
Enhanced features	Picture in Picture
Remote sharing function	Up to 20 interactive whiteboards and projector systems, Up to 20 browser viewers per interactive whiteboard
Remote PC Operation	No
What's In The Box	Wired LAN: 10BASE-T/100BASE-T/1000BASE-T Wireless LAN: IEEE 802.11; IEEE 802.11 a/b/g/n
Other Features	Quick Guide and Safety Instructions, Warranty sheet, Customer registration postal card, RGB cable, USB cable, Power cord, Felt-tipped pen, Remote controller, AAA batteries (2)
Other	Brightness will depend on input mode and other picture settings.

Noise	Less than 40dB
Power Consumption	Less than 564W (with controller)
Stand-by mode	Less than 50W (without controller)
Recovery time from stand-by mode	About 5 sec.
Operating temperature	0°C - 32°C
Operating humidity	10% - 80%
Altitude limitation	Lower than 2,000m (sea level)

Optimize your workplace for more effective teamwork and innovation.
